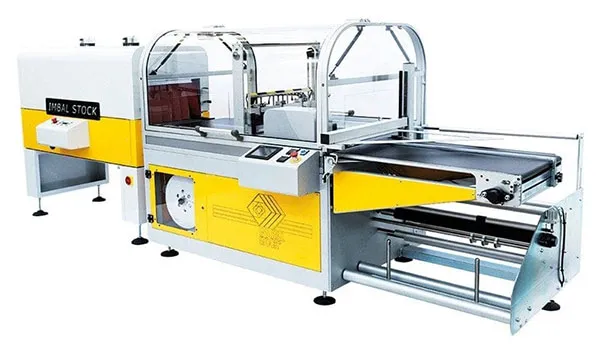

Pneumatic side sealer Experience IS 350 CONCEPT
Pneumatic side sealer Experience IS 350 CONCEPT
Shrink wrapper Experience IS 350 CONCEPT, designed for fully automatic packaging, is a three conveyor belts side sealer suitable for types of products ranging from food, technical and / or cosmetic industry.
The flow of products is in line and the packaging cycle is controlled by sensors reading of product to facilitate both manual loading and automatic.
The products are wrapped in a center-folded film which is sealed on the three sides.
The cross sealing bar has pneumatic drive and follows an intermittent movement. The side welding works with a system that allows to ensure the integrity of the seal and to maintain the sealing area always clean.
Changing the layout does not require any rotation of the wheels, it's made with automatic adjustments from touch screen or manually managed via tape guide. It is suitable for medium / high production and achieves a performance of 4000 packages per hour. Ideal for small spaces thanks to its compact dimensions.
TECHNICAL SHEET
|
POWER
|
3,5 Kw
|
|
Voltage
|
220 V 50 Hz 1 Ph + N + T
|
|
Length
|
2232 mm
|
|
Height
|
1400 mm
|
|
Width
|
990 mm
|
|
Weight
|
1100 kg
|
|
PPM
|
35 - 55
|
|
Product dimensions
|
W: da 30 a 250 mm / H: DA 10 A 150 mm / L: INFINITA
|
TECHNICAL FEATURES:
- working plane: 900 mm +/- 50 mm
- Sealing bar width: 350 mm
- Reel of film dimension (center folded):
- MAX. 450 mm | diameter 350 mm Width
- Technology: Intermittent with pneumatic cross sealing
- Mechanical speed: 4.000 packs/hour
- Function controls with PLC and operator panel MITSUBISHI
- Touch Screen Mitsubishi
- Reel unwinding and scrap unwinding placed in front position, for a fast change of the film reel.
- Photocells on the horizontal and vertical direction that allow a perfect reading of any product in function of its format.
- Filling control of the scrap film reel with automatic winding and consequent cycle arrest.
- Height setting manually
- Width setting with sliding guides, adjustable by handle for a rapid execution of the format change.
- Remote Control
CONSUMABLES:
Polypropylene, Polyolefin, Polythene
PNEUMATIC DATA:
Pneumatic power: 6 bars constant and dehumidified
OPTI
- Electronic System Allen Bradley or Siemens
- Sealing bar's height up to 300 mm
- Sealing system for polythene up to 100 microns
- Stainless Steel Version
- Machine's left version
- Photocell with crossed rays
- Reading mark photocell
- Center folding unit
- Special sealing systems
- Customized loading / unloading systems
- Labeling / Printing systems
- Strippers / pushers and other accessories
- Additional customized solutions can be studied together with our technician STAFF according to industry needs.
ADVANTAGES
- Reduced Maintenance- Easy to use- Systems for various consumables- Reel of film loading in front position- Easy format changes- One operator
