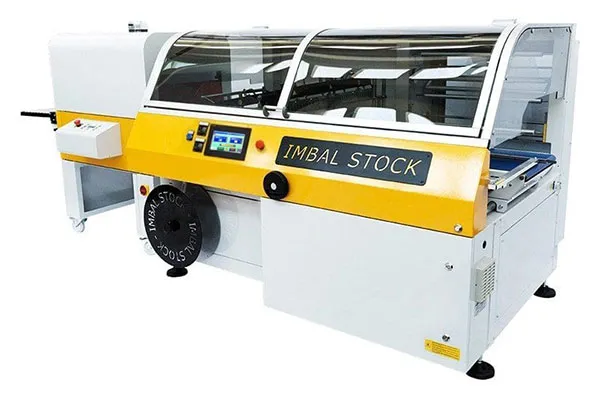

L sealers Hammer series 600

L sealers Hammer series 600

Automatic L sealers from Hammer series are characterized by the unique value for money and modularity. All models in this range can be supplied with or without shrink tunnel. Compared to traditional shrink wrappers, HAMMER series provides higher productivity as well as the possibility of using Polyethylene film, besides the traditional shrink films.The modular L sealers with shrink tunnel includes different models, for outputs up to 3,000 packs / hour.

TECHNICAL SHEET

TECHNICAL FEATURES:

• Sealing bar size: 640 x 510 mm
• Product height: Max. 150 mm
• Conveyor speed: 10-30 m / min
• Conveyor Belt: Max. Width 400 mm
• Productivity: Max. 40 pcs / min (variable depending on the size and material used)
• Reel of film specifications: Max. 600 mm - ø 350 mm

PNEUMATIC DATA:

Compressed air pressure (excluding compressor): 6 bar

Compressed air consumption: 6 Nl / p

OPTIONAL

- Center folding device for film savings- Kissing belt system- Sealing Bar for Polythene film- Special working plans in stainless steel- Motorized roller conveyors- Customized working plans- Rollers

ADVANTAGES

- Reduced Maintenance- Easy to use- Systems for various consumables- Easy format changes- One operator
