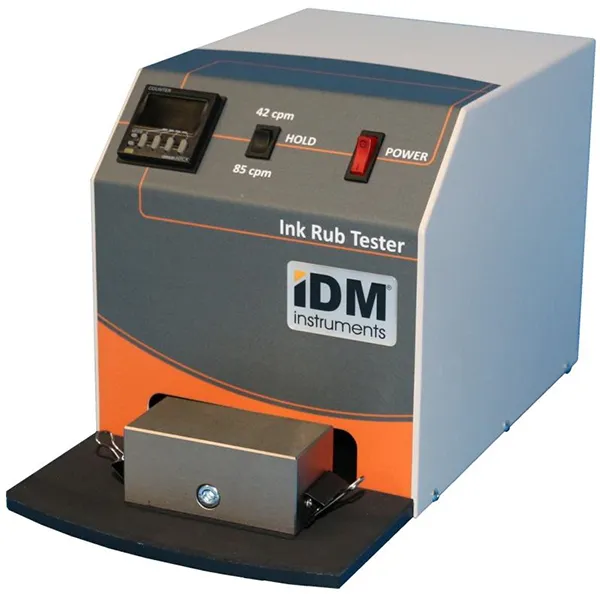

Ink Rub Tester I0001

Ink Rub Tester I0001

Ink Rub Tester I0001 is used to determine the quality of adhesion, and scuff resistance of ink to paper surfaces, plastic and aluminium film. Operation of the motorized unit is easy and it can be done entering the number of rubs in the pre-set counter, and then starting the unit. It will rub the sample until the pre-set value is achieved.

Dry and Wet rub can be performed on the Ink Rub Tester. The method of operation is that a 2 or 4 Lb weight with a clean white board is swept across the test piece for a set number of times, and then closely examined for the amount of scuffing.


  • Printed Carton board
  • Printed Corrugated board
  • Paper • Plastics
  • Aluminium Film


  • Two Speeds - 42 and 85 cpm
  • Fast Testing
  • Counter 0-9999
  • 2 lb and 4 lb weights
  • 1 Creasing Board
  • 1 Creasing Tool
  • Cutting templates:
    • Sample: 152 x 51mm
    • Base: 152 x 76mm


  • Heated Weights 2 lb or 4 lb
  • Ambient to 150°C
  • Standard BS 3110: 1959- Method 1

2lb & 4lb Heated Weights can be supplied with the IDM Ink rub tester that have a thermostat control and can operate from Ambient to 150°C. The heated weights can be connected directly into the rub tester for operation.


• TAPPI T830 • ASTM D5264 • ASTM F1571
• GB 7706 • JIS K5701 • ISO 9000
