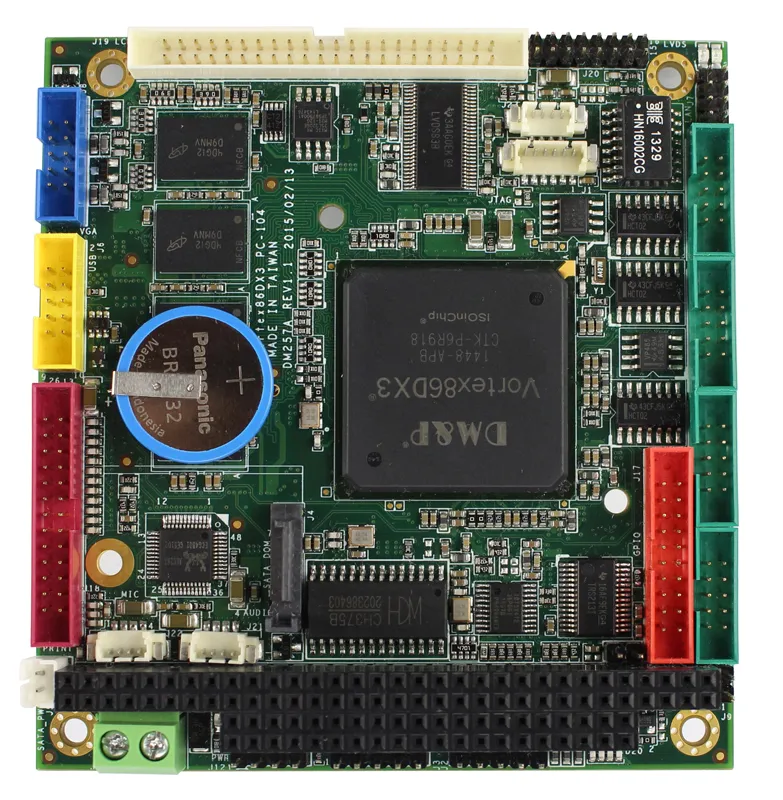

PC 104 Single Board Computers

The PC 104 Single board computers are designed to meet PC/104 specification with backward compatibility to provide migration path for projects facing end-of-life challenges with their existing x86 based PC/104 controller. These embedded single board computers are designed as a plug in replacement with backward compatibility to support legacy software to extend existing product life cycle without heavy re-engineering.
The PC 104 Single board computers is suitable for broad range of data-acquisition, industrial automation, process control, automotive controller, AVL, intelligent vehicle management device, medical device, human machine interface, robotics, machinery control and more.

Technical Specifications of PC 104 Single board computers:



  Processor

DM&P SoC CPU Vortex86DX3 1GHz

  Real Time Clock with Lithium Battery Backup
  Cache   L1:32K I-Cache, 32K D-Cache, L2 Cache:512KB
  Bus   PC/104 Standard Compliant
  System Memory   1GB/2GB DDR3 Onboard
  Watchdog Timer   Software programmable from 30.5 us to 512 seconds x2 sets(Watchdog 1 fully compatible with M6117D)
  Display

Integrated 2D VGA chip with dual display support (VGA + TTL / VGA + LVDS)

  VGA: Maximum resolution up to 1920x1080 @ 60Hz LVDS: Maximum resolution up to 1024x768 @ 60Hz 18/24-bit single channel LVDS (Default 24-bit LVDS)
  LAN   Integrated 10/100Mbps Ethernet x1
  Audio   ALC262 (HD Audio)
  Touch Controller   PS/2 interface (Optional)
  I/O Interface

SATA 7P Connector x1 RS-232/485 port x4 USB port (Ver. 2.0) x2

USB Hot SWAP x1(Optional) Parallel port x1

  16-bit GPIO port x1 10/100Mbps Ethernet port x1




  Power Requirement   Single Voltage +5V @1.3A (Typical)
  Weight   80g
  Dimensions   90mm x 96mm (3.54 x 3.77 inches)
  Operating Temp.

-20oC ~ +70oC

  -40oC ~ +85oC (Optional)
  Operating System Support

Free DOS, DOS 6.22, PCDOS 7.1, DR-DOS, x-DOS, OS/2, Windows 7,

Windows Embedded Standard 7, Windows Embedded Compact 7, Windows Embedded Compact 6, Windows XP Professional, Windows Embedded Standard(XPE), POS Ready(WePOS), Embedded Linux,

  X-linux, QNX, Vxworks and FreeBSD.
