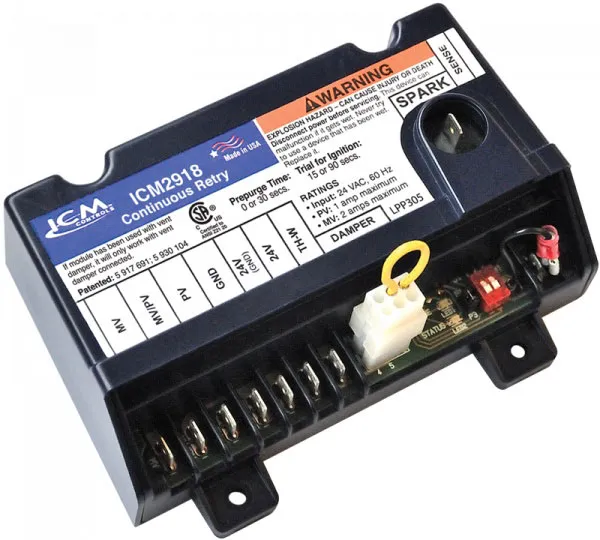

ICM2918
ICM2918
Universal Intermittent Pilot Ignition Control Module
The ICM2918 Universal Intermittent Pilot Gas Ignition Control Module is a field service replacement for many popular flame rectification type of intermittent pilot ignition (IPI) modules. Provides electronic control for most intermittent pilot ignition systems used on gas-fired furnaces, boilers, and other heating appliances.
Replaces ICM290A, Honeywell S8610U & over 280 other models from Camstat, Fenwal, UTEC/HSC, Johnson Controls, Robertshaw and White-Rodgers.
DETAILS:
Universal Intermittent Pilot Ignition Control Module
• Provides ignition sequence, flame monitoring and safety shutoff for single/dual rod intermittent pilot control applications
• For gas fired furnaces, boilers and other heating applications
• Switch selectable pre-purge and ignition trials with permanent lock
• Works with or without vent damper connected
• Works with both Natural Gas and LP Gas systems
SPECIFICATIONS:
- Control voltage: 18-30 VAC @ 50/60 Hz
- Trial for ignition: 15 or 90 seconds (switch settable)
- Operating temperature: -40°F (-40°C) to 165°F (74°C)
- Relative humidity: 5% – 95% (non-condensing) at +55°C
- Pre-purge time: 0 sec or 30 sec (switch settable)
- Green status LED: System status and error codes
- Yellow flame LED: Flame presence and flame strength
