ICM CONTROLS

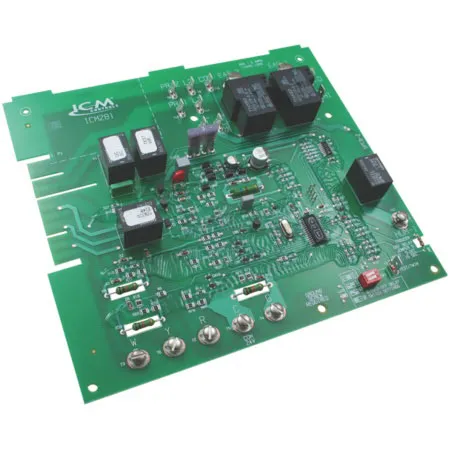

ICM281

ICM281

DETAILS:

*Low cost form, fit and functional replacement for Carrier CES0110020, CES0110048 and CES0110057-xx series, control boards. *Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner *Microprocessor-based for precise timing *Functions with all 24 VAC thermostats *Designed for 100% gas shutoff in case of ignition failure *Twinning compatible with another ICM281 board *Reverse polarity protection *Secondary brownout voltage protection * Diagnostic fault codes (blinking LED) for simple troubleshooting

WEIGHT/DIMENSIONS:

• Weight: 0.6
• Height: 0.75
• Width: 8.5
• Length: 7.625

SPECIFICATIONS:

• Line Voltage Range: 98 to 132 VAC @ 60Hz
• Ignitor: 5A @ 120 VAC
• Cool Blower: 30A, 2 HP, 240 VAC
• Heat: 5A, 1/2 HP, 240 VAC
• Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
• Gas Valve: 1.5A @ 30 VAC
