ICM CONTROLS

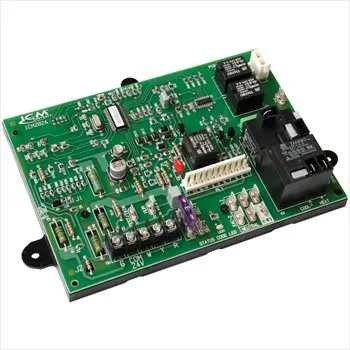

ICM282B

ICM282B

DETAILS:

The ICM282B is a low cost, Carrier OEM Replacement Furnace Control Board.

• Popular replacement for Carrier HK42FZ004/007/008/009/011/013/016/034
• Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
• Microprocessor-based
• Designed for 100% gas shutoff in case of ignition failure
• Twinning compatible with other ICM282B boards
• Reverse polarity protection
• Secondary brownout voltage protection
• Compatible with a 24 VAC standard thermostat
• Provides diagnostic LED to aid in troubleshooting

WEIGHT/DIMENSIONS:

• Weight: 0.55
• Height: 1.5
• Width: 8
• Length: 5

SPECIFICATIONS:

• Voltage Range: Line (98 to 132 VAC) @ 60Hz• Ignitor: 5A @ 120 VAC• Cool Blower: 10A @ 120 VAC• Heat: 5A @ 120 VAC• Inducer Motor: 4A @ 120 VAC• Gas Valve: 1.5A @ 24 VAC• Humidifier: 0.5A @ 24 VAC maximum• Electric Air Cleaner: 1A @ 120 VAC
