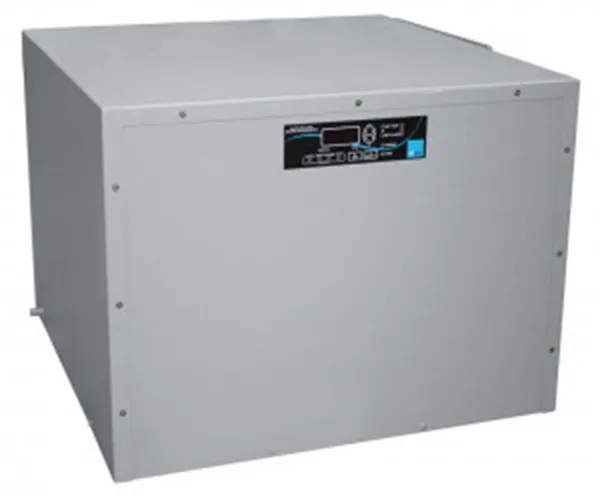

T Series Air Conditioners

T Series Air Conditioners

For Applications requiring 3000 to 8000 Btu/h enclosure cooling capacities.

The T Series takes a lot of what the V Series line of air conditioners from Ice Qube has to offer but in a Top Mount style. Ice Qube’s exclusive use of rotary compressors allow us to manufacture the smallest, lightest weight, most energy efficient Top Mount cooling solutions in the industry. The T Series is ideal for applications that require air flow from the top of the application utilizing the natural characteristics of hot and cold air. Naturally hot air rises and cold air sinks. This natural air flow allows for the T Series to be more efficient and not take up valuable space on the side of your application where other critical components may be housed. The T Series ranges from 3000-8000 Btu/h (879-2345 Watts) of closed-loop cooling capacity and 12.06”-15.06” (305.82-382.52mm) of mounting height.

Standard Features

• UL Certified
• CE Certified
• RoHS Compliant
• REACH Compliant
• 12.06”-15.06” (305.82-382.52mm) of mounting height
• 3000-8000 Btu/h (879-2345 Watts) of closed-loop cooling capacity
• Closed-loop cooling to protect your application and increase efficiency
• Maintains NEMA type 12, 3R, 4, or 4X integrity of your enclosure
• Environment friendly HFC refrigerant
• Standard Digital Controller
• Programmable temperatures and alarm
• Easy installation
• Indoor and outdoor use
• Powder coated durable 16-gauge welded steel construction
• Efficient, quiet, and long-lasting rotary compressor
• Easy pull-out, cleanable, reusable electrostatic 10-micron filter
• Space saving aesthetic cabinet design
• Certified by independent certification agencies
• In-house tested via Ice Qube’s testing facilities
• Engineered for optimal engineering efficiency in enclosure cooling

Options & Accessories

• Custom finishes
• 304 or 316 Stainless Steel (includes NEMA 4X Package)
• Ethernet Controller (ETHR)
• Low Ambient (LA)
• Alarm Output (XO3)
• Easy pull-out, cleanable, reusable electrostatic 4-micron filter
• CP3 Total Corrosive E-Coating (CP3)
• 120V 60Hz
• 230V 50/60Hz
• Telcordia GR-487 Testing (Salt Fog & Wind Driven Rain) Available
