Ice Qube, Inc

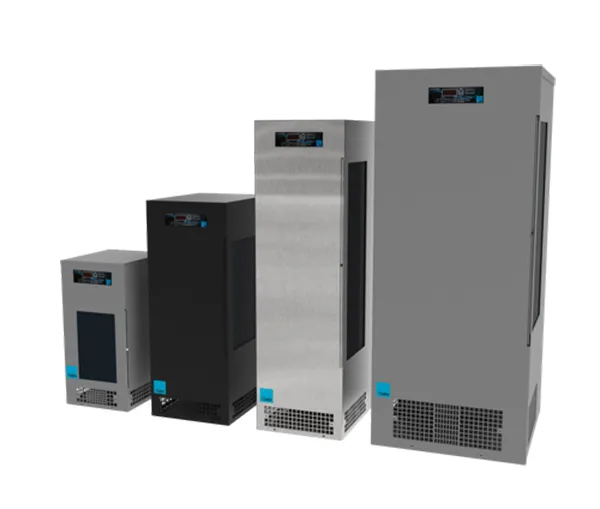

EV Series Air Conditioners

EV Series Air Conditioners

Certified for General Purpose – UL Listed

The next evolution of cutting edge design is here. The EV, known to the industry as the Evolution Series, from Ice Qube is a UL-certified for general purpose use air conditioner taking our product line to new levels. Just as the V Series did back in 1995, the EV Series is revolutionizing the industry and breaking boundaries. The EV Series utilizes Ice Qube’s new Subpanel Airflow Technology (SAFT), Vibration Reduction Longevity Technology (VRLT), centrifugal fans, higher airflow rates, and rotary compressors to optimize efficiency, durability, and reliability.

The EV Series is offered in 1000-20000 Btu/h (293-5861 Watts) of closed-loop cooling capacity and mounting widths ranging from 9.85”-18” (250-459mm).  The new EV Series has the industry’s highest operating temperature of 140°F/60°C to endure the harshest of environments worldwide.

 Standard Features

• UL Certified
• CE Certified
• RoHS Compliant
• REACH Compliant
• 9.85”-18” (250-459mm) of mounting width
• 1000-20000 Btu/h (293-5861 Watts) of closed-loop cooling capacity
• Closed-loop cooling to protect your application and increase efficiency
• Operating temperature from -40° F/-40° C to the industry's highest of 140° F/60° C
• Subpanel Airflow Technology (SAFT)
• Vibration Reduction Longevity Technology (VRLT)
• Environment friendly HFC refrigerant
• Centrifugal fans
• Higher airflow rates
• Maintains IP66 integrity of your enclosure
• Maintains NEMA type 12, 3R, 4, 4X integrity of your enclosure
• Built in condensate eliminator
• Easy installation
• Indoor and outdoor use
• Warm enclosure air is drawn in near the top of the unit, while conditioned air is discharged near the bottom
• Three position condenser air flow with the option to direct hot discharge air in different directions
• Standard Digital Controller
• Programmable temperatures and alarm
• Controller can be installed on either front or rear of the unit (inside or outside of enclosure)
• Can be used with or without purge system
• Efficient, quiet, and long-lasting rotary compressor
• Powder coated durable 16-gauge welded steel construction
• Easy pull-out, cleanable, reusable electrostatic 10-micron filter
• In-house tested via Ice Qube’s testing facilities
• Engineered for optimal engineering efficiency in enclosure cooling
• Minimal visible fasteners

Options & Accessories

• Custom finishes
• 304 or 316 Stainless Steel (includes NEMA 4X Package)
• Ethernet Controller (ETHR)
• Low Ambient (LA)
• Alarm Output (XO3)
• Easy pull-out, cleanable, reusable electrostatic 4-micron filter
• CP3 Total Corrosive E-Coating (CP3)
• 120V 60Hz
• 220/230V 50/60Hz
• 400V 50/60Hz
• 480V 50/60Hz
• Telcordia GR-487 Testing (Salt Fog & Wind Driven Rain) Available
