Ice Qube, Inc

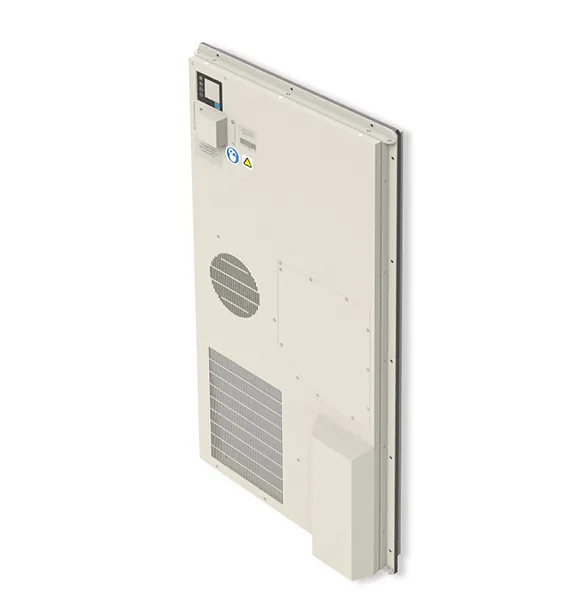

Blade Series Air Conditioners

The Blade Series is the world's slimmest compressor-based packaged air conditioner in the industry and a part of the Inset Mount line of air conditioners from Ice Qube. The Blade Series was designed and engineered for applications that require little protrusion from the application. When the Blade Series is fully installed it protrudes .591”-1.69” (15.01-42.92mm) from the application. This allows for a very low-profile integration and allows for your application to fit into tighter and smaller environments.

The Blade Series is just another testament to Ice Qube and our engineering team’s constant strive to develop cutting edge cooling solutions. The Blade Series come in 1000-5000 Btu/h (293-1465 Watts) of closed-loop cooling capacity and 3.15”-4.72” (80.01-119.88mm) of mounting depth.

Standard Features

• UL Certified
• CE Certified
• RoHS Compliant
• REACH Compliant
• Telcordia GR-487 Tested (Salt Fog & Wind Driven Rain)
• .591”-1.69” (15.01-42.92mm) of protruded mounting depth
• 3.15”-4.72” (80.01-119.88mm) of full unit thickness
• 1000-5000 Btu/h (293-1465 Watts) of closed-loop cooling capacity
• Closed-loop cooling to protect your application and increase efficiency
• Maintains NEMA type 12, 3R, 4, or 4X integrity of your enclosure
• Environment friendly HFC refrigerant
• Digital LCD fingertip touch-sensitive controller
• Programmable temperatures and alarm
• Variable fan speed operation for increased efficiency
• Built-in condensate evaporator
• Nano coating to protect coils from harmful particulates
• Space saving ultra-thin design
• Easy installation
• Indoor and outdoor use
• Powder coated durable 16-gauge welded steel construction
• Efficient, quiet, and long-lasting rotary compressor
• Certified by independent certification agencies
• In-house tested via Ice Qube’s testing facilities
• Engineered for optimal engineering efficiency in enclosure cooling

Options & Accessories

• Light Gray or Stainless Steel
• 304 or 316 Stainless Steel (includes NEMA 4X Package)
• Internal heat (IHO)
• Easy attach, cleanable, reusable electrostatic 10-micron filter
• Easy pull-out, cleanable, reusable electrostatic 4-micron filter
• 120V 60Hz
• 230V 60Hz
