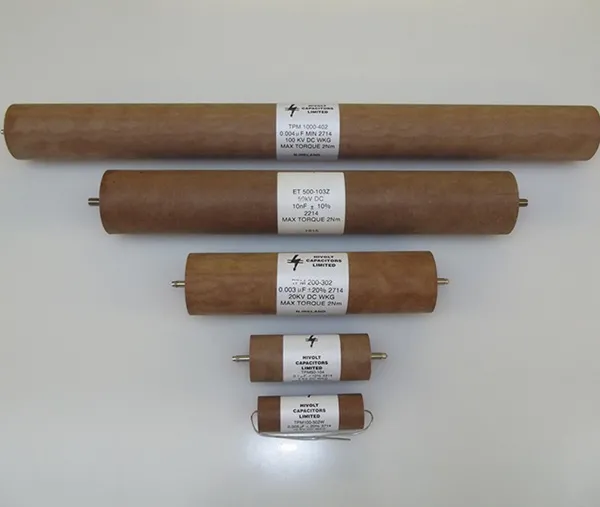

The TPM range are in the form of a Synthetic Resin Bonded Paper tube hermetically sealed at both ends with resin . Axial terminations are via M5 x 12mm studs or tinned copper wire.

Specifications

They are impregnated and filled with a mineral oil. The container is a Synthetic Resin Bonded Paper tube sealed at both ends with resin assuring hermetic sealing. The capacitors are terminated with M5 x 12mm studs or tinned copper wire.

NOTE: The impregnant used is a non toxic highly purified and inhibited mineral oil.

• Capacitance Range: 0.0005µF – 2µF. The tolerance is +/-10%. Other tolerances are available on request. Nominal values measured at 1kHz.
• Temperature Range: -55ºC to 85ºC. The nominal voltage rating is applicable from -55ºC to 85ºC.
• Temperature Coefficient: Capacitance will increase by 2% per 100ºC temperature rise.
• Voltage Range: 1kV – 100kVDC.

Note: The impregnant used is a non-toxic highly purified and inhibited mineral oil

• APPLICATIONS:The TPM range of capacitors are specifically designed for high voltage filters and can be successfully used in the following applications. High Voltage Smoothing; Induction Heating; RF Transmitter Power Supplies; X-Ray Power Supplies.
• Capacitance Range: 0.001µF – 2µF. The tolerance is +/-10%. Other tolerances are available on request. Nominal values measured at 1kHz.
• Temperature Range: -40°C to 85°C. Derating is required for higher operating temperatures.
• Temperature Coefficient: Capacitance will increase by 2% per 100°C temperature rise.
• Voltage Range: 1kV – 100kVDC
