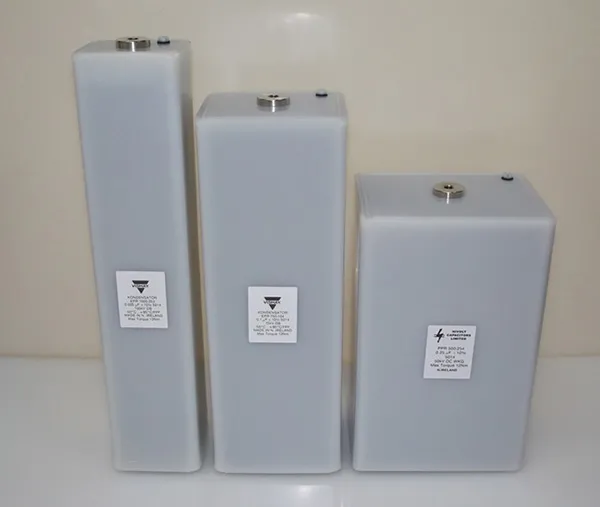

The PPR range are in the form of a hermetically sealed rectangular Polypropylene case. Standard terminations are M10 threaded inserts.

Specifications

The PPR range of capacitors utilise a mixed dielectric material that consists of polyester or polypropylene film and capacitor paper and are impregnated and filled with a mineral oil. The container is a robust rectangular polypropylene case. The internal construction is designed to prevent movement when the capacitor is subjected to mechanical shock or vibration. An inert welding process ensures hermetic sealing. Standard terminations are M10 threaded inserts as the plastic case eliminates the need for large high voltage stand-off terminals. (Other terminal types are available on request). The case has an extremely low affinity for moisture and is resistant to virtually all electrical environments. Brackets can be welded on as required.

NOTE: The impregnant used is a non toxic highly refined, purified and inhibited mineral oil.

• APPLICATIONS:The PPR range is designed specifically for DC applications such as filters, bypass, coupling, rapid discharge, pulse forming networks and high voltage power supplies such as those found in radar, laser and X-ray equipment. They are particularly suited for use in portable equipment.
• Capacitance Range: 0.002µF – 100µF. The tolerance is +/-10%. Other tolerances are available on request. Nominal values measured at 1kHz.
• Temperature Range: -40°C to 85°C. The nominal voltage rating is applicable from -55°C to 85°C. Derating is required for higher operating temperatures.
• Temperature Coefficient: Capacitance will increase by 2% per 100°C temperature change.
• Voltage Range: 1kVDC – 300kVDC
