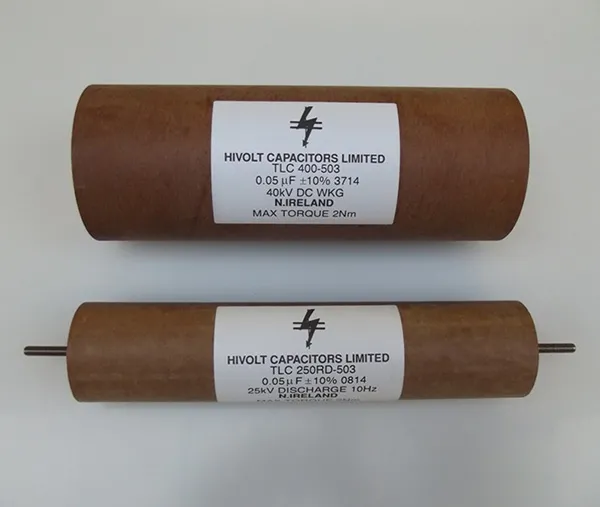

The TLC range of capacitors are similar in design to the TPM range but are housed in a more robust container with M6 x 15 axial stud terminals as standard.

Specifications

They utilise a mixed dielectric material that consists of polyester or polypropylene film and capacitor paper and are impregnated and filled with a mineral oil. The container is a Synthetic Resin Bonded Paper (SRBP) tube sealed at both ends with resin assuring a hermetic seal. The capacitors may be used in air, oil or SF6. They are terminated with M6 studs x 15mm long. (M10 x 20mm studs can also be supplied on request).

Note: The impregnant used is a non-toxic highly purified and mineral oil.

• APPLICATIONS:The TLC range of capacitors are specifically designed for high voltage filters and can be successfully used in the following applications. High Voltage Smoothing; Induction Heating; RF Transmitter Power Supplies; X-Ray Power Supplies.
• Capacitance Range: 0.001µF – 2µF. The tolerance is +/-10%. Other tolerances are available on request. Nominal values measured at 1kHz.
• Temperature Range: -40°C to 85°C. Derating is required for higher operating temperatures.
• Temperature Coefficient: Capacitance will increase by 2% per 100°C temperature rise.
• Voltage Range: 1kV – 100kVDC
