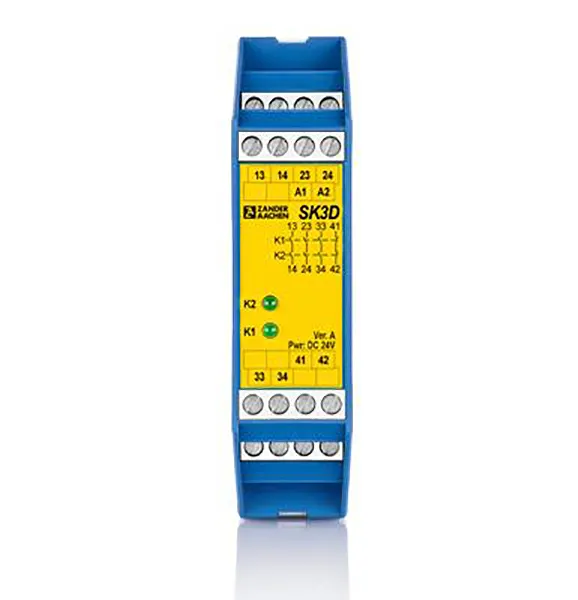

SK3D-Safety Coupling-Extension
SK3D is an all-purpose safe coupling relay with three safe relaycontacts. It ensures the quick and safe deactivation of the moving parts of a machine in case of danger.
The SK3D couples safe signals of e.g. pulsed PLC’s to the periphery for galvanic isolation and power adjustment.
SK3D can also be used as an extension module for our safety relais, safety timer and compact safety controller.
Feature
Value
SK3D
Safety functions
Safe coupling relay
Certified according to
EN 60204-1; DIN EN ISO 13849-1; EN 62061; EN 50156-1;
EN 746-2; IEC 61508 Parts 1-2 and 4-7; IEC 61511-1
Approvals
CE, TUV
Supply Voltage
DC 24 V / AC 115 V / AC 230 V
Number safety contacts
3
Max. switching capacity of the safety contacts
8 A / 250 VAC resistive load
Number auxiliary contacts
1
PL; Kat.; SILCL (EN ISO 13849-1; EN /IEC 62061)
PL e; Kat. 4; SILCL 3
Width
22.5 mm
Order No. fixed screw terminals
472282 (24 V) / 472281 (115 V) / 472280 (230 V)
Order No. plug-in screw terminals
474282 (24 V) / 474281 (115 V) / 474280 (230 V)
Order No. push-in twin spring connector
475282 (24 V) / 475281 (115 V) / 475280 (230 V)
Order No. EKLS4; set of plug-in screw terminals
472592
Order No. EKLZ4; set of push-in twin spring connector
472595
Order No. Spacer for a defined minimum distance between two safety relays (see derating)
472596
