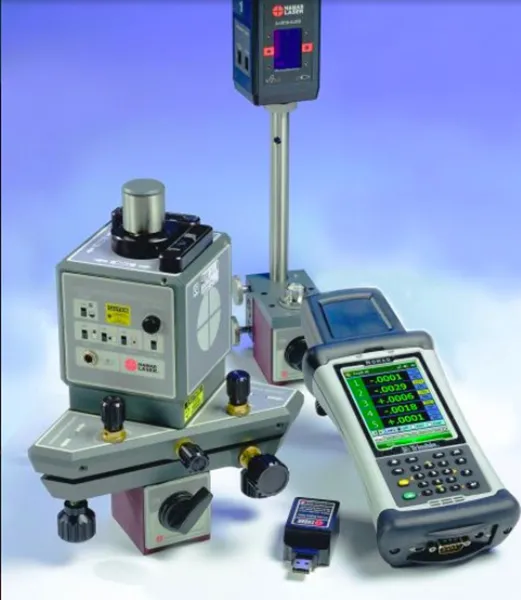

L 730 Precision Leveling Laser

L 730 Precision Leveling Laser

Hamar Laser’s L-730 Precision Leveling Laser System is one of the most accurate and easy-to-use leveling, surface flatness and straightness measurement system on the market today. It features an automatically rotating laser plane that is second in accuracy only to the L-740 Ultra-Precision Leveling laser. It also features large-range, wireless targets and built-in 3 arc second level vials. Continuously rotating laser planes and the capability to use multiple target sensors at the same time let you level machinery 60-70% faster than laser transits, theodolites or levels.

System Highlights

Fast: Aligns large machining centers up to 70% faster than traditional methods or interferometers.
Easy: Multiple high-resolution wireless targets with a range of up to 100 ft. (30 m) provide real-time alignment data, so alignment/leveling errors can be fixed without changing the setup.
Accurate: Precision laser planes have a flatness of .00012 in/ft. (0.01 mm/m or 2 arc secs) in a 180°/360º sweep and .00006 in/ft. (0.005 mm/m) in a 90º sweep.
Versatile: Flatness, straightness, leveling and parallelism measurements of almost any horizontal or vertical surface.
Smart: Powerful Windows-based Plane5 software, combined with advanced wireless interfaces, makes collecting and analyzing alignment data fast and easy.

Key Features

Flatness measuring accuracy of .00012 in/ft. (0.01 mm/m or 2 arc secs) in a 180°/360º sweep and .00006 in/ft. (0.005 mm/m) in a 90º sweep.
Continuously rotating diode laser with 100 ft. (30.5 m) radius operating range.
Set up in as little as 10 minutes.
Uses A-1519-2.4ZB Single-Axis Wireless Target with .00002 in. (0.0005 mm) resolution and +/-.55 in. (+/-14 mm) measuring range.
R-1357-2.4ZB PDA Readout displays data for up to 5 A-1519-2.4ZB Targets simultaneously.
Coarse Pitch and Roll leveling base adjustments.
Real-time data display.
Backlit, precision level vials accurate to .00018 in/ft. (0.015 mm/m).
Upgrade to L-730SP Split-Prism Levels and L-730CFU Coarse/Fine PRY Base Upgrade for .00006 in/ft. (0.005 mm/m or 1 arc sec) accuracy.
Uses AC adapter or battery pack.
Windows 7/8/10-based Plane5 software quickly records and analyzes flatness data.

If you do not see your application listed, please contact us to discuss your requirements. We will be more than happy to provide a solution that’s right for your unique alignment problem.

Applications

Aerospace
