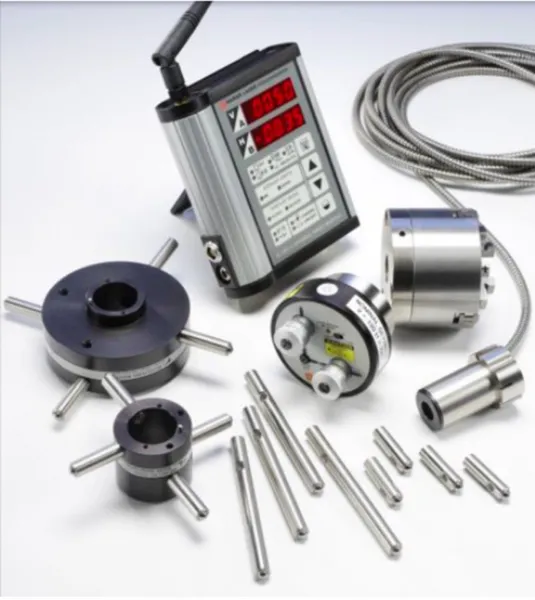

L 705 Bore Alignment Laser System

L 705 Bore Alignment Laser System

Hamar Laser’s L-705 Bore Laser Alignment System is highly accurate and unparalleled for ease of use. It can handle a wide range of bore alignment and straightness determination and measurement tasks. Even extremely difficult bore alignment challenges, like spherical bearing bores, can be done easily. The L-705 may be used at distances up to 100 feet and is recommended for applications with lower pointing-accuracy requirements, such as extruder barrel alignments and aerospace hinge lines. The L-706 is recommended for high pointing-accuracy applications, such as engine block bore alignments.

System Highlights

Fast: 15-minute setup time. Measure each bore in seconds!
Easy: Unique self-centering adapters are easy to insert into tight spaces and do not need to be inverted (0° & 180°) to calculate results.
Versatile: Many target and adapter options for bore diameters from .70 in. (18 mm) to 40 in. (1 m) or more.
Simple: Use simple X-Y readouts with .0001 in. (0.001 mm) resolution to view the data. No “black boxes” needed!
Bore9 Software: Record bore alignment, calculate straightness results and print reports using optional Windows-based Bore9 Software.

Key Features

5-minute setup time. Measure each bore in seconds.
L-705 Operational Range: 1 to 100 ft (0.2 to 30.5 m).
Angular adjustment resolution of .0025 in. in 100 ft (0.025 mm in 30 m).
A-510STA and A-510LTA Self-Centering Bore Adapters are easy to insert into tight spaces and do not need to be inverted (0° & 180°) to calculate results.
Customized adapter measuring legs fit a large range of bore diameters from 2.25 to 16 in. (57.2 to 406.4 mm).
R-1307 Readouts with .0001 in. (0.001 mm) resolution update in real time as the bore is adjusted.
Add a second readout to transmit readings wirelessly up to 200 ft (61 m).
Optional Bore9 Software aids with setup, records bore alignment data, analyzes the results and prints reports.
Optional small-bore targets can align bores as small as .250 in. (10mm).
Optional spherical-bore target with Virtual-PSD™ technology comes with customized adapters for easy and fast alignments.
Durable and rugged, designed to last many, many years of service.

If you do not see your application listed, please contact us to discuss your requirements. We will be more than happy to provide a solution that’s right for your unique alignment problem.
