L 706 Bore Laser System

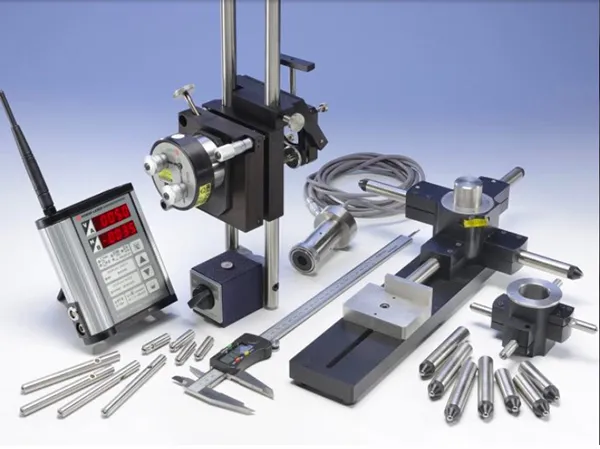

L 706 Bore Laser System

Hamar Laser’s L-706 Bore Laser Alignment System is highly accurate and unparalleled for ease of use. It can handle a wide range of bore alignment and straightness applications. Even extremely difficult bore alignment jobs, such as spherical bearings, can be done easily. The L-706 may be used at distances up to 100 feet, and is recommended for applications with higher pointing-accuracy requirements, such as engine block bore alignment. The L-705 is recommended for applications with lower pointing-accuracy requirements, such as extruder barrel alignments or aerospace hinge lines.

System Highlights

Fast: 15-minute setup time. Measure each bore in seconds!
Easy: Unique self-centering adapters are easy to insert into tight spaces and do not need to be inverted (0° & 180°) to calculate results.
Simple to learn: Use simple X-Y readouts to view the data. No “black boxes” needed!
Versatile: Many target and adapter options for bore diameters from .250 in. (10 mm) to 40 in. (1 m) or more.
Bore9 Software: Record bore alignment, calculate straightness results and print reports using optional Windows-based Bore9 Software.

Key Features

15-minute setup time. Measure each bore in seconds.
L-706 Operational Range: 1 to 100 feet (0.2 to 30.5 m).
Angular adjustment resolution of .001 in. in 100 ft (0.025 mm in 30 m)
A-514A,B,C Self-Centering Bore Adapters are easy to insert into tight spaces and do not need to be inverted (0° & 180°) to calculate results.
Adjustable legs fit a large range of bore diameters from 3.75 to 40 in. (95.3 mm to 1 m) or more.
A-514GS Leg-Setting Gage centers adapters to .0002 in. (0.005 mm).
R-1307 Readouts with .00001 in. (0.001 mm) resolution update in real time as the bore is adjusted.
Add a second readout to transmit readings wirelessly up to 200 ft (61 m).
Optional Bore9 Software aids with setup, records bore alignment data, analyzes the results and prints reports.
Optional small-bore targets can align bores as small as .250 in. (10 mm).
Optional spherical-bore target with Virtual-PSD™ technology comes with customized bore adapters for easy and fast alignments.
Durable rugged, designed to last many, many years of service.

If you do not see your application listed, please contact us to discuss your requirements. We will be more than happy to provide a solution that’s right for your unique alignment problem.

Applications

Aerospace
