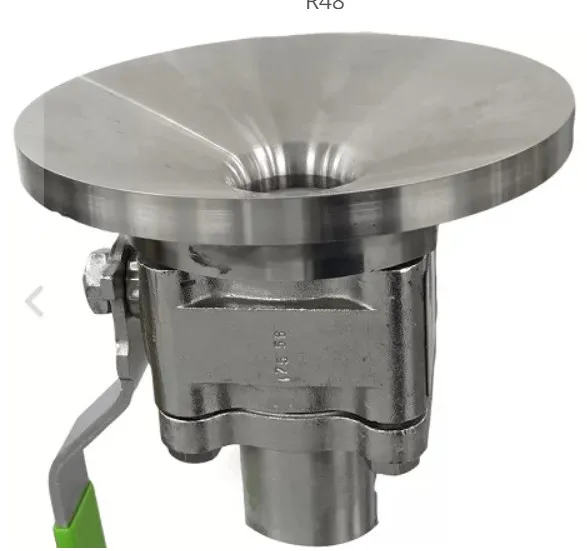

R48 ASME BPE Flush Tank Floating Ball

R48ASME BPE Flush Tank Floating Ball

Size range:

1/2”- 6”(DN15-DN150)

Pressure range:

Class 300

Comply with the ASME BPE standard for applications in which cleanability and drainability are essential for product quality.Patented HermetiX™ stem seal, made from FDA-approved polymer materials. The valve port diameter is identical to the tube inner diameter so that no expansion or contraction can take place inside the system, resulting in full drainage and zero traces that could cause contamination.“To provide superior welding quality, to avoid rouging on austenitic stainless steel surfaces, and corrosion attack on welding areas, Metal parts are defined, as standard, with low ferrite and controlled sulfur”. Upon request a forged 316L stainless steel material with ferrite content less than 1% is also available.

Actuation

The COMPACT actuator is a quarter-turn rack & pinion pneumatic actuator that doubles the torque and cut by half the piston travel of standard pneumatic actuators.The superior performance is achieved by Habonim’s patented four piston design, which generates torque around a centrally located piston, this translates into:                  • Double the power for the same size actuator or Half the size for the same amount of power                  • Much faster opening and closing time.A full range of Mounting Kits is available, allowing optimized mounting and use of the COMPACT actuator for valve automation with Habonim’s valves and simple integration with valves that have a standard ISO-plate mounting interface.Valve Automation Packages is offered based on Habonim’s standard and costume made valves and actuators or as costume made packages with valves, actuators and top-works per customer requests.
