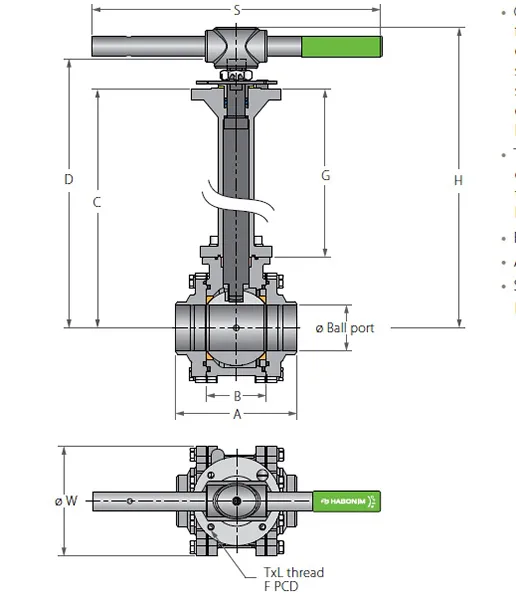

Cryogenic Floating Ball 3 Piece BD - Bidirectional
C47-BD
Size range:
1⁄4”- 8” (DN8-DN200)
Pressure range::
Class 300/150
Full BIDIRECTIONAL – Full ΔP
Design features Solid one-piece high torque durable stem. Tight stem-to-ball directional engagement, ensures relief hole alignment. Strict materials and manufacturing tolerances control.
Efficient heat transfer Narrow space between extension ID and stem OD allows the stem seal to remain at an ambient temperature.
No trapped cavity Self-pressure-relief sealing for bidirectional full pressure service.
Flexible bonnet installation angle Up to 45° from vertical for 12” bonnet (per BS6364 guidelines). Up to 15° from vertical 6” bonnet (not BS6364 compliant).
