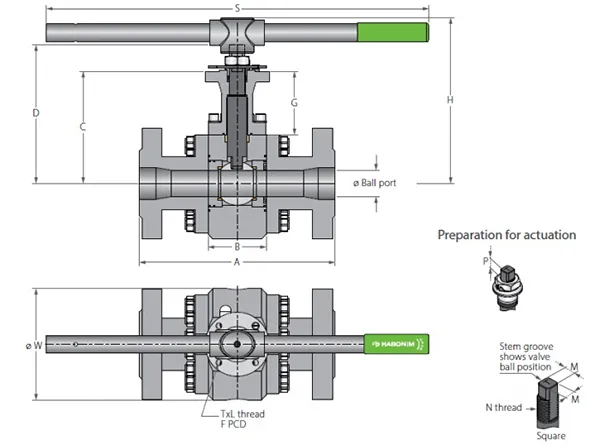

Cryogenic High Pressure Floating Ball 3 Piece
C28
Size range:
1/4” – 8” (DN8-DN200)
Pressure range::
Class 2500
High Pressure Cryogenic Class 2500, full differential pressure for sizes up to and including 2″ (DN50), differential pressure of up to 103 bar (1494 psi) for sizes 2½” (DN65) and above with hybrid seats.
Pressure containing parts are in compliance with ASME B16.34, for wall thickness, design type-tested for burst testing of four times the pressure rating for 5 minutes. A one-size-up stem made of high tensile material complies with ASME B16.34 and API 6D for drive train requirements provides a sufficient safety factor during operation. A special hybrid seat design is comprised of a metal housing and polymer insert machined as a single unit provides bubble tight shut-off (Rate A), combined with lower operating torque.
