Flexible Circuit

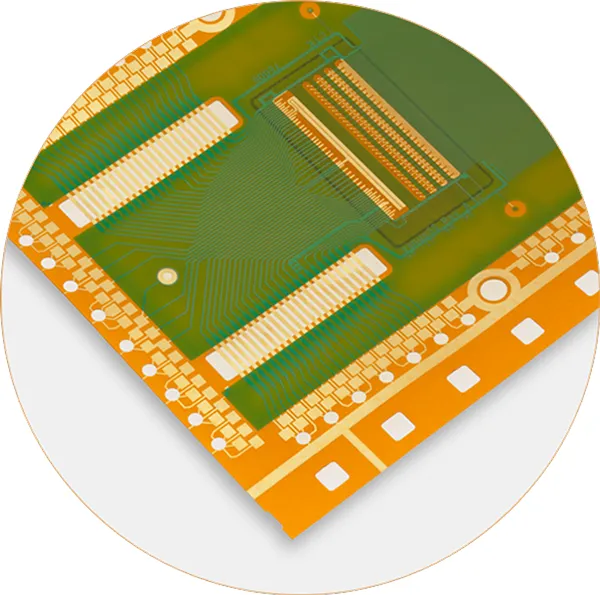

Single Sided Flex

A single layer flex circuit is the most basic and consists of a flexible polyimide film laminated to a thin sheet of copper. The copper layer is then chemically etched to produce a circuit pattern specific to your specific design requirements. A polyimide coverlay is then added for insulation and environmental protection of the circuit.

Benefits

As a connective device, the primary benefits of flexible circuits compared to traditional cabling and rigid boards include

• Reduced wiring errors
• Elimination of mechanical connectors
• Unparalleled design flexibility
• Higher circuit density
• More robust operating temperature range
• Stronger signal quality
• Improved reliability and impedance control
• Size and weight reduction
