Flexible Circuit

Double Sided Flex

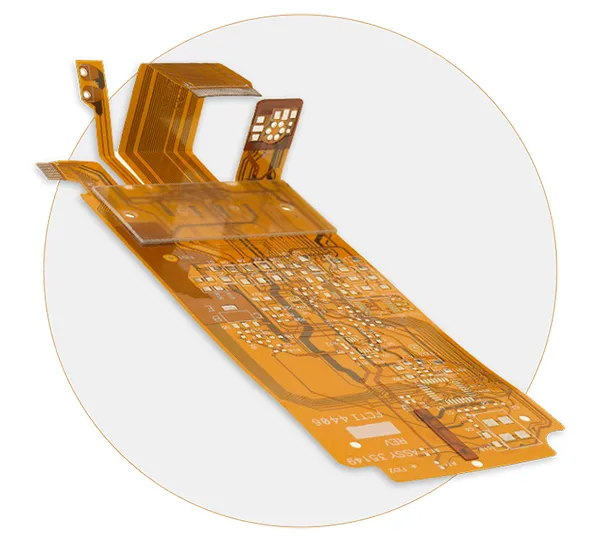

A double sided flex circuit is a circuit having two conductive layers, one on each side of the base layer of polyimide within the circuit. Trace patterns, specific to your needs, can be created on both sides of the substrate film and can be connected where desired with copper plated through-holes. The plated through holes make electrical connections between the two layers.

Benefits

As a connective device, the primary benefits of flexible circuits compared to traditional cabling and rigid boards include:

• Reduced wiring errors
• Elimination of mechanical connectors
• Unparalleled design flexibility
• Higher circuit density
• More robust operating temperature range
• Stronger signal quality
• Improved reliability and impedance control
• Size and weight reduction
