Testing & Inspection

Testing & Inspection

Quality control for each electronic board

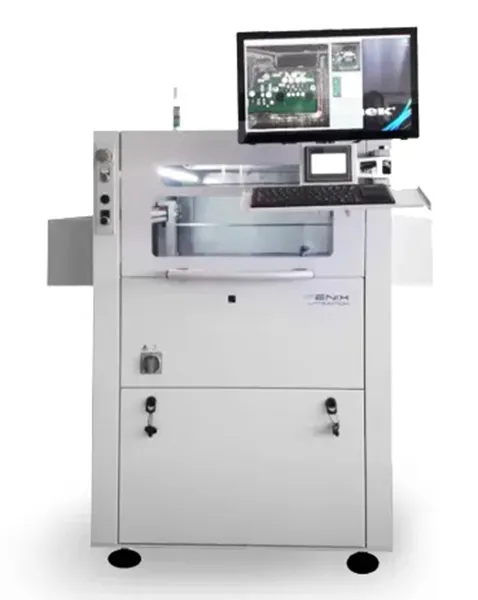

“Testing and Inspection” systems provide bespoke online solutions to check the correct assembly of each component and to test its perfect functionality. The automatic optical inspection takes place after the assembly or welding process and evaluates every detail with the aim to immediately report any anomalies, thus becoming an indispensable tool for the safety, quality, and durability of each printed circuit. The inspection stations are integrated into the assembly lines dedicated programming and with the possibility of implementing different technologies tailored to the needs of each production process.Our catalogue offers various machines for carrying out this very important phase, featuring vision systems and inspection systems of the most valuable brands in the sector. One of the systems completely produced by Fenix for inspection purposes is Horus which relies on technologies for the vision and control of the individual Pins installed on the electronic board, verifying their correct positioning. Another machine listed among the assembly and test systems is the Workstation which was born in cooperation with EGICON Srl, an Italian company specialized in vision systems: this workstation oversees the manual insertion of components onto the board by the operator, with an optical guide system to provide the operator with directions to the drawer from which the component must be taken and to the precise point of insertion by means of a laser shape projected directly onto the board. The phase ends with the option of an additional vision system that checks the correct positioning of the component at the end of the manual operation.
