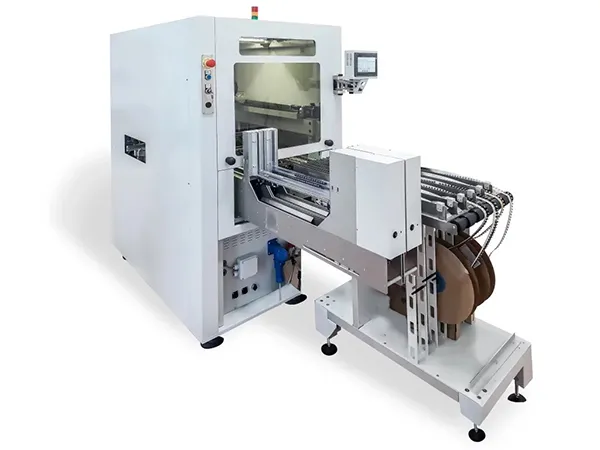

PTH Components Assembly Cells

PTH Components Assembly Cells

PTH COMPONENT ASSEMBLY CELLS Customization of each PCB with automatic assembly of electronic components

The PTH – Pin Through Hole electronic components feature pin leads for insertion in the holes of the electronic board, with continuity realized through the welding process. The positioning of these components and the clinching, distinctive of the pin leads being folded under the board, can be carried out automatically and safely inside a specially programmed robotic cell. Our assembly cells are variously equipped in accordance with the particular process to be carried out, with possible customizations regarding the grippers that are provided according to the components to be handled or the feeders that handle components in multiple types of packaging (stick, tape, loose …). Furthermore, the same assembly cell can be equipped with vision systems for checking the board indexing or the components and for traceability through linear or 2D coding. The system is operated through a clear and intuitive human-machine interface (HMI) from which it is possible to access all the features, configurations, and functionalities available such as, for example, the management of insertion points, clinching and related parameters, power supply functionality and much more.
