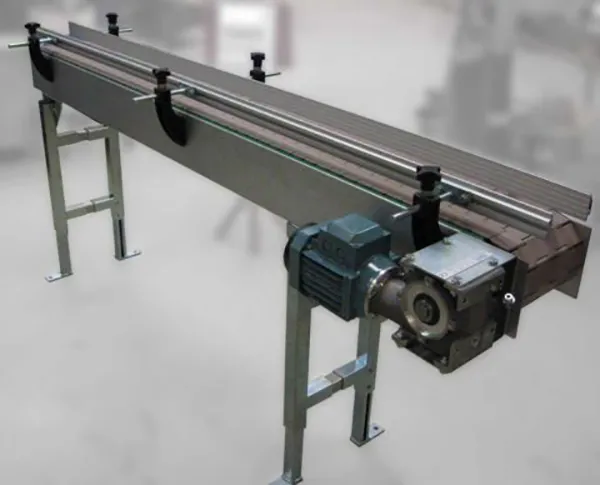

Band chain

Band chain

Belt conveyors

Robust and reliable conveyor for high hygiene requirements

Areas of use

When transporting light and medium loads. Very suitable when in need of cornering transport. Often used for transporting cans and bottles at filling lines.

Loads and capacity

Maximum 50 kg / m and 100 kg total load.

Technical data (other dimensions and design on request)

Belt bar of 2 mm stainless steel
Belt widths: 82, 114, 152, 190, 204 and 305 mm
Lengths: From 600 mm and up to 20 meters depending on load, speed, etc. Ball-bearing or plain-bearing drive roller.
The strap chain slides against the stainless steel plate, but as an alternative, plastic sliding strips can be mounted. Worm gear motor 0.12 - 0.37 kW 400 Volt 50 hz 3-phase or 230 Volt 1 phase. Band speed: fixed positions 4-30 m / min, alternatively stepless speed with frequency control

• Band of acetal or stainless steel
• Band widths from 82 mm and up to 305 mm
• Supporting construction and edging of stainless steel
• Curves up to 180 °
• Frame with or without holes for internal cleaning
• Can be washed with high pressure

Accessories

• Fixed or adjustable stands
• Intermittent operation with pause-pulse relay
• Stepless speed control
• Edge strip of stainless steel pipe dia 12 mm or stainless steel flat iron
• Contactor, motor protection with 3 meter cable and EUR ballast
