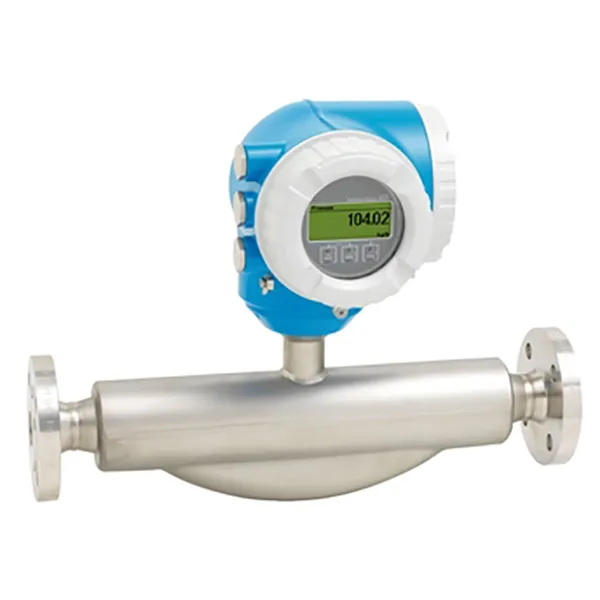

Proline Promass F 300 Coriolis flowmeter

Proline Promass F 300 Coriolis flowmeter

Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter

Specs at a glance

•     Max. measurement error
  Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
  Volume flow (liquid): ±0.10 %
  Mass flow (gas): ±0.25 %
  Density (liquid): ±0.0005 g/cm³

•     Measuring range
  0 to 2 200 000 kg/h (0 to 80 840 lb/min)

•     Medium temperature range
  Standard: –50 to +150 °C (–58 to +302 °F)
  Option: –50 to +240 °C (–58 to +464 °F)
  High temperatur option: –50 to +350 °C (–58 to +662 °F)
  Option: –196 to +150 °C (–320 to +302 °F)

•     Max. process pressure
  PN 100, Class 600, 63K

•     Wetted materials
  Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
  Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)

Field of application

Promass F has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments, it is suited for the broadest range of applications. With its compact transmitter Promass F 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures measurement reliability and enables extension of recalibration cycles.

• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Highest measurement performance for liquids and gases under varying, demanding process conditions.

Device properties

• Mass flow: measurement error ±0.05 % (PremiumCal)
• Medium temperature: -196 to 350 °C (-320 to 662 °F)
• Nominal diameter: DN 8 to 250 (3/8 to 10")
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available

Benefits

• Highest process safety – immune to fluctuating and harsh environments
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology
