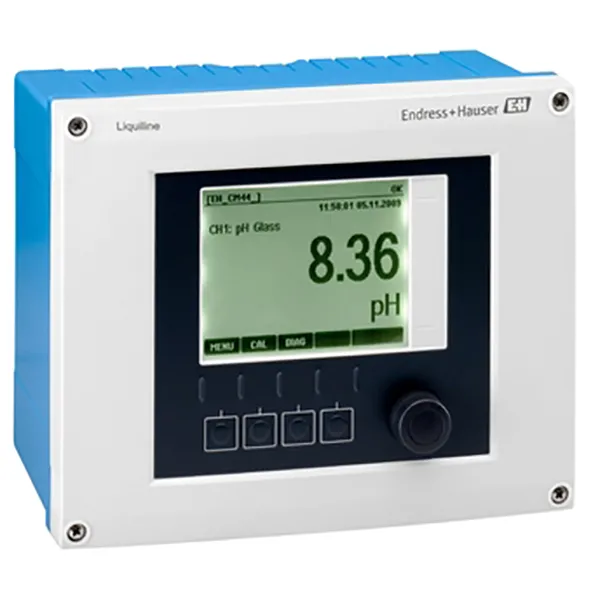

4-channel transmitter Liquiline CM444

4-channel transmitter Liquiline CM444

Expandable multiparameter field device for all industries

Specs at a glance

•     Input
  1 to 4x Memosens digital input
  2x 0/4 to 20mA Input optional
  2 to 4x Digital input optional

•     Output / communication
  2 to 8x 0/4 to 20 mA current outputs, alarmrelay,
  4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

•     Ingres protection
  IP66 / IP 67


Field of application

The Liquiline CM444 transmitter allows you to connect up to 4 Memosens sensors of your choice from over 12 measurement parameters. It offers automatic sensor recognition, flexible expandability, and standardized spare parts with all other devices of the Liquiline platform. With its inputs, outputs, controllers, and math modules, you can even control cleaning systems or dosing pumps. Heartbeat Technology helps you find the ideal balance between measuring point availability and maintenance costs.

Liquiline CM444 is suitable for all industries and their utilities, such as:

• Food & Beverages
• Life Sciences
• Power & Energy
• Water & Wastewater
• Chemicals
• Marine

It features the following communication protocols and interfaces:

• 0/4...20 mA
• HART
• PROFIBUS DP
• Modbus RS485/RTU
• Modbus TCP
• EtherNet/IP
• PROFINET
• Webserver

The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX, and CSA, allow the connection of sensors installed in hazardous areas.

Benefits

• Clever simplicity:
  One controller for all parameters and applications, intuitive user interface, automatic sensor recognition, hot plug & play with pre-calibrated Memosens sensors.
• Highest flexibility:
  Universal modules for all parameters minimize spare part stock and allow for easy 1-click extension to up to 8 channels at any time.
• Seamless system integration:
  Unique portfolio of communication standards suits every distributed control system (DCS).
• Simple and safe commissioning:
  Saving configuration on SD card enables fast set-up on duplicate installations.
• Process control from a distance:
  Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.
• Higher availability, lower costs:
  Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.
