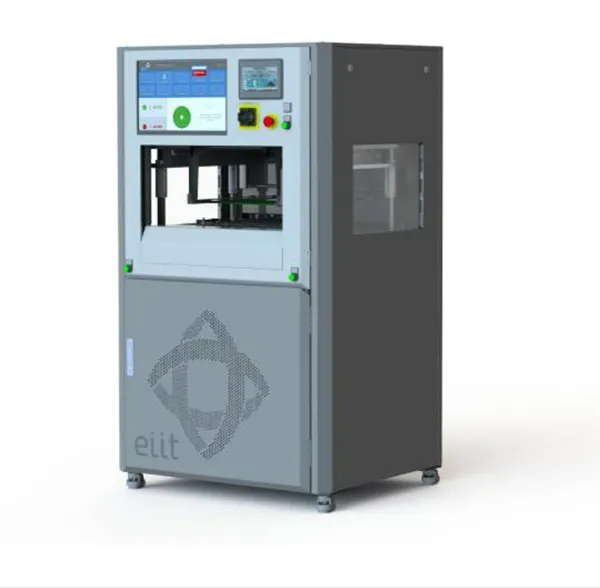

Universal Off-Line Handler from the OLS Series

Developed as a cost-effective easy-to-install and versatile solution, the OLS800-Tsi Handler (from the OLS Series) fits with any offline ICT (In-Circuit) testing application. Its design allows a fast and ergonomic fixture exchange, with less than 3 minutes of fixture changeover time.

Product configuratio

• High resistance aluminum structure to handle +10KN forces
• TSi51 HD or TSi52 – up to 2560 TP @ 2.8N/TP + 1280 fixture top/bottom transfer pins @1.1N/TP
• TSi52 HD – up to 5120 TP @ 1.5N/TP + 2560 fixture top/bottom transfer pins @1.1N/TP
• Maximum PCB size of 510×460 mm
• Servomotor controlled compression movement during the test
• Dual stage testing
• Servomotor programmable test heights
• Fixture coding on both bottom and top plates for product/fixture validation
• 2 modular pilon blocks for integration of additional instrumentation such as CAN, RF, pneumatic or other specific needs
• 12U rack positions used for Teradyne TSi52 instrumentation integration
• Machine control communication drivers for .NET, NI LabWindows CVI,LabVIEW or any other third-party platforms with TCP/IP communication sockets
