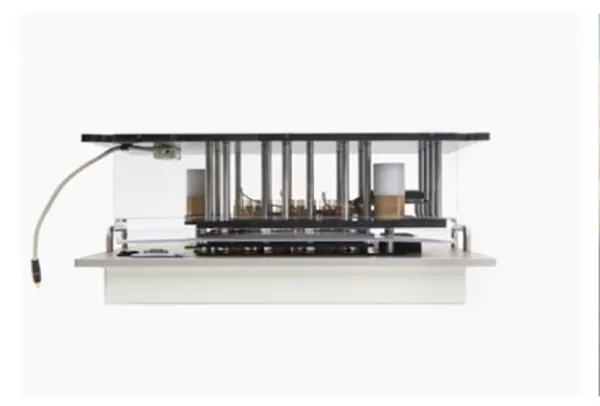

Tooling and Fixturing

Controlar develops and supplies tooling and test fixtures:

• for a vast application field: ICT (In-Circuit Tests), Functional tests, Flash Programming, EoL (End-of-Line) tests, etc.
• for all currently used handling systems in the market: inline or offline, mechanical, pneumatic or vacuum operation
• from simple mechanical fixtures, with a few hundred probes and low production volumes, up to highly complex fixtures with thousands of probes, double side probing, double actuation, etc.

Fixture Validation – Probe Impact Analysis

As standard in our fixture production validations, Controlar uses microscopes to execute Probe Impact Analysis on the PCB. After the fixture assembly but before wiring is initiated, a preliminar study is conducted to validate probe plate drilling.When the fixture is completely ready, a new verification is performed. The results are recorded and included in the fixture documentation.
