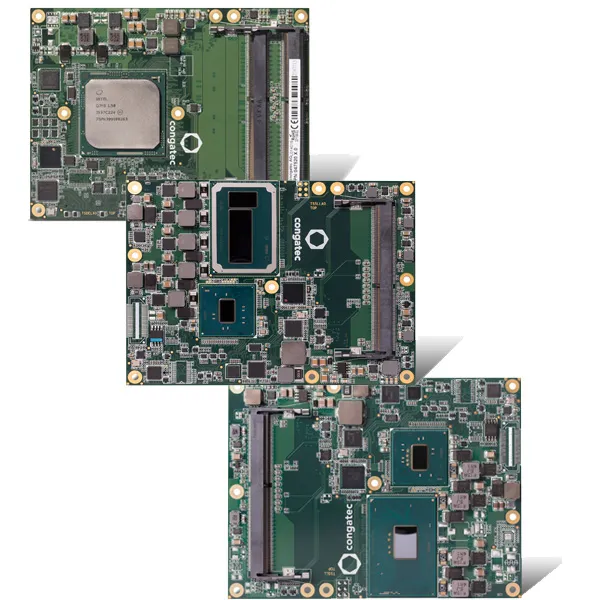

COM Express Server On Module

COM Express Server On Module

COM Express server on module processors enables further server class features such as 10 Gigabit Ethernet and extra PCI Express lanes. The new power saving Intel® Xeon processors allow for server performance on COM Express modules.


The new conga-B7XD COM Express Type 7 Server-on-Modules come in a headless design and are available with ten different server processors: From the 16 Core Intel® Xeon® processor D1577 to the Intel® Pentium® processor D1519 for the industrial temperature range (-40 °C to +85 °C).

Features of COM Express Server on Module (B7XD COM Express Type 7 Server-on-Modules)

Up to Intel® Xeon® D 1577 with 16 Cores
2x 10 Gigabit Ethernet KR Interface
32x PCI Express lanes
up to 16 processor cores
up to 24MByte Cache with Intel Cache Allocation Technology
industrial grade variants


conga -TS175 COM Express server on module is available with two quadcore Intel® Xeon® processors with hyper threading as well as 5 different Intel® Core&™ i7, i5 and i3 processors within a 45 to 25 W TDP envelope.


conga-TS170 modules are equipped with the 6th generation 14nm Xeon® v5 and Intel® Core™ processors. They feature a TDP of 25-45W, up to 8MB smart cache and super-fast 2133 DDR4 memory up to 32 GB, implemented as ECC memory for safety-critical applications in the Intel® Xeon variants.
