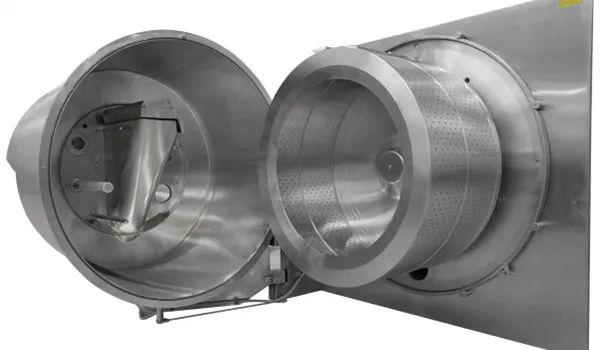

Horizontal peeler centrifuge HX GMP–Pharma

HX/GMP horizontal peeler centrifuge

• The horizontal peeler centrifuge HX/GMP is designed for typical pharmaceutical applications.
• The HX/GMP centrifuge can be used for a production of intermediate and especially finished synthesis products, where it is absolutely necessary to avoid the contact between product and operator.
• Its also possible to have a completely sterilizable version with vaporized hydrogen peroxide (VHP system).
• Maximum purity of discharged products (API and HPAPI)

SPECIFICATIONS

• Full access and inspection to the parts in the process zone, including rear of the basket and shaft seal;
• High level surface finishing for the cleaning of process zone;
• Deign cGMP con eliminazione delle zone di ristagno del prodotto e minima presenza di viti e filetti all’interno della camera di processo;
• Design cGMP with elimination of product stagnation zones and minimum presence of screws and threads within the process chamber;
• Complete cleaning  (Clean In Place – C.I.P. system) in changing from one production campaign to another to avoid "cross contamination" between products. This makes the machine suitable for multi-purpose applications. WME (Washing Machine Effect) and spray balls are used
• The centrifuge can be sterilized with steam or Vaporized Hydrogen Peroxide (VHP system)
• Work cycle (from the loading phase to the discharge phase) where the operator cannot come in contact with the treated product; solids discharge with “High Containment” (continuous liner, isolator, …)
• The centrifuge can work in the following operating modes, while it is controlled by PLC and DCS: fully automatic, semi-automatic, manual;
• Possibility of easy through-the-wall installation (in clean room);
• Compact overall dimensions;
• Installation directly on the floor on anti-vibration dampers;
• FDA oil bearings lubrication for all models;
• Knife blade fixed without use of bolts and with design suitable to the maximum recovery of solids discharged and protection of the discharge chute;
• The horizontal basket ensures a uniform load of the cake;
• Complete removal of the residual heel cake via a nitrogen pressure system from the external part of the basket (“blow back”) with optimization of the nitrogen consumption
• Solids discharge chute with an inclination to the vertical of 30° to 36° (depending on the model). This allows an easier discharge, especially for pasty products
• Dismantling of shaft and bearings from the rear side of the machine (service area) without contaminating the clean room;
• The endless filter cloth, thermo-welded, in polypropylene or other tissues of various sizes and micrometrie, is easily replaceable;
• Possibility to install a laser cake detector  external to the process chamber (“no contact type”);
• Materials in contact with the product: all stainless steels and special alloys available, such as AISI 316L, AISI 904L, Hastelloy, Monel, ALLOY 59, 254 SMO, NICKEL, TITANIUM, SAF 2205. HALAR coatings (ECTFE), also antistatic and FDA certificated, Teflon ETFE, HARD RUBBER
