Comi Condor

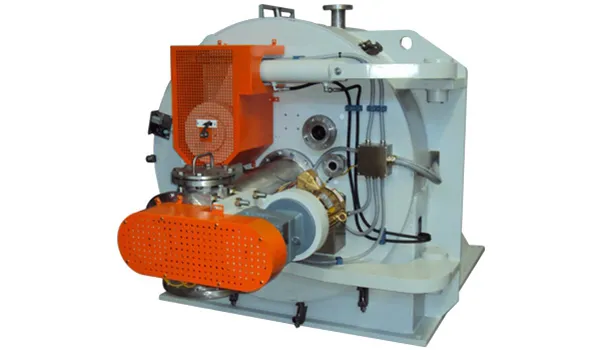

Horizontal peeler centrifuge HX - Chemical

HX horizontal peeler centrifuge

The horizontal peeler centrifuge HX is made for chemical applications.

The version for the chemical industry, with perforated basket or rotary siphon, is normally used on products with good filterability. The cycle (feeding, washing, centrifugation and peeling) can be run at maximum speed, obtaining a high hourly production.

SPECIFICATIONS

• Perforated basket or syphon basket;
• Visual access to the process area from the front door and inspection ports;
• Work cycle (from the loading phase to the discharge phase) where the operator cannot come in contact with the product;
• The centrifuge can work in the following operating modes, while it is controlled by PLC and DCS: fully automatic, semi-automatic, manual;
• Installation on concrete or carbon steel inertia base with anti-vibration dampers;
• Oil bearings lubrication for all models;
• Knife blade fixed without use of bolts;
• Installazione su base inerzia in cemento o acciaio al carbonio e tamponi antivibranti;
• Discharge even at maximum speed;
• The horizontal basket ensures a uniform load of the cake;
• Solids discharge via chute or screw conveyor;
• Complte removal of the residual heel cake via a nitrogen pressure system from the external part of the basket (“blow back”);
• The endless filter cloth, thermo-welded, in polypropylene or other tissues of various sizes and micrometrie, is easily replaceable;
• Materials in contact with the product: all stainless steels and special alloys available, such as AISI 316L, AISI 904L, Hastelloy, Monel, ALLOY 59, 254 SMO, NICKEL, TITANIUM, SAF 2205. HALAR coatings (ECTFE), also antistatic and FDA certificated, Teflon ETFE, HARD RUBBER;
