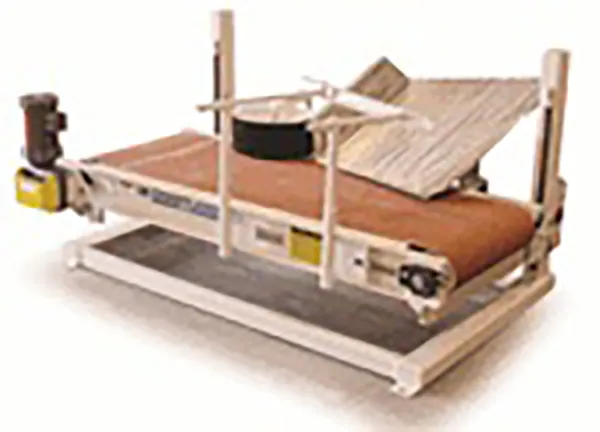

4216 Bag Turner Conveyor

4216 Bag Turner Conveyor

Slider bed design for use in transferring bags from an upright position to a horizontal bottom first orientation in-line with the closing conveyor line.

Design Features:

• Structural channel frame construction, 4’-0” overall length
• 22” wide 4 ply tan slip top belt, V-guide molded to underside to maintain belt tracking, stainless steel mechanical lacing
• Compact 1/2 HP C-face shaft mounted drive design for 70 FPM belt speed
• Motor starter in NEMA 12 enclosure with pushbuttons and safety lockout – 208/230/460 V., 60 Hz., 3 Ph.,
• Adjustable bag knock over bar
• Polished stainless steel bag slide plate
• Rubber faced bag turn wheel
• Fixed support height for 12” top of belt

Options:

• Lengths to meet specific applications
• Wider units for special applications
• Variable speed controls
• Wash down, corrosive and explosion proof electrical packages
• Special finish coatings
• Adjustable height supports, 12”-20” top of belt
• Vertical lift – either manual or powered
• Casters with brakes
• Slave driven unit
• Less bag turning hardware for use as in-feed to flattener conveyor
