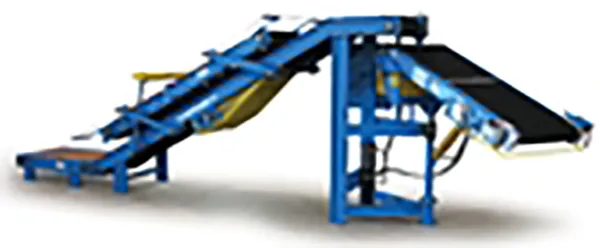

4215 Bag Flattener

4215 Bag Flattene

Roller bed design for use in compressing and shaping bags for more uniform bag layers during stacking process.

Design Features:

• Structural channel frame construction:11’-0” overall length lower frame,8’-0” overall length upper frame.
• 22” wide 150# black rough top belts, stainless steel mechanical lacing.
• 1 HP C-face shaft mounted drives design. 70 FPM belt speed.
• Motor starters in NEMA 12 enclosure with pushbuttons and safety lockout – 208/230/460 V., 60 Hz., 3 Ph.
• Safety stop cable pull cord around perimeter of conveyor.
• Center take-up assembly on lower frame. Manually adjusted spring loaded bag tensioning assembly.

Available Features:

• Lengths to meet specific applications.
• Wider units for large bags.
• Wash down, corrosive and explosion proof electrical packages.
• Special finish coatings.
• Nose-over discharge.
• Quick Turn compression adjustment.
• Swivel stacker discharge boom.
• Horizontal in-feed section.
