Chantland MHS Co

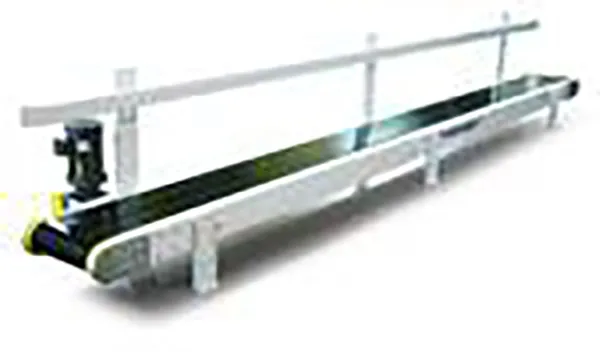

4201 Standard Duty Closing Conveyor

4201 Standard Duty Closing Conveyor

Slider bed belt conveyor designed to transfer filled bags in an upright position through a closing system such as heat sealer or sewing head.

Design Features:

• 8’-0” overall length.
• Compact ½ HP drive design with chain and sprockets mounted within conveyor frame. 35 FPM belt speed.
• 208/230/460 V., 60 Hz., 3 Ph., motor starter in NEMA 12 enclosure with pushbuttons and safety lockout.
• 12” wide 120# PVC COS belt. Stainless steel mechanical lacing.
• Bag rail on back side full length of conveyor. adjustable in/out and up/down.
• Supports adjustable for 12" to 20" top of belt height.
• Formed mild steel construction.

Available Features:

• Wash down, corrosion resistant and explosion proof electrical packages designed per application.
• Variable speed controls.
• Manual or motor driven vertical lift.
• Casters with brakes.
• Stainless steel frame construction.
• Lengths to meet specific applications.
• Special finish coatings.
