Carter Motor Company

Tachometers

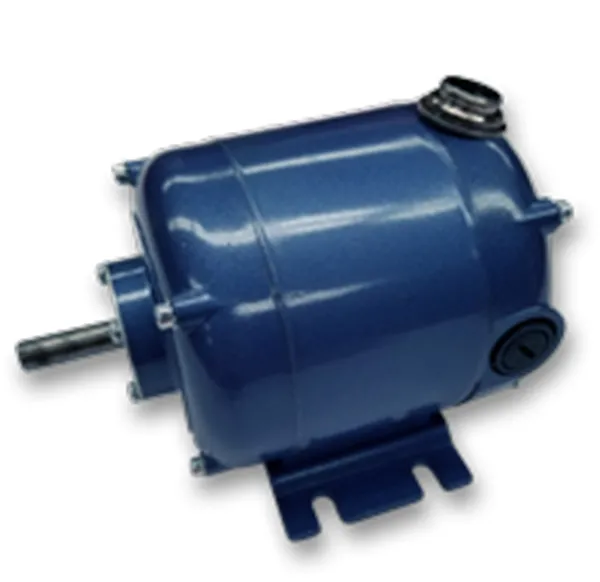

The Carter Motor Company DC PM Tachometer Generator provides a simple and dependable means to obtain your speed measurements. Our Tachometer Generator are designed to meet the need for high-output DC models in commercial and industrial applications. Rugged design and performance can meet needs of 5 to 60 volts per thousand RPM. The long life and trouble-free service provided by the DC PM Tachometer Generators will help you measure and control your product quality and performance at a low cost.

Specifications

• Volts (DC): 5 – 60 volts
• Amps: 0.1 – 0.35 amps
• KRPM: 3,000 – 10,000 KRPM

Features

• High Starting Torque
• Sealed Ball Bearings
• Replacement Brushes
• Dynamically Balanced Armatures
• Shaft Diameter up to 5/16"
• 2 Year Warranty
• Custom Designs Available

Optional Features

• Face Mount
• Flange Mount
• Base Mount
• Adjustable Magnets
• Special Mounting Brackets
• Cord Sets, Leads and Cables
• Different Shaft Configurations
