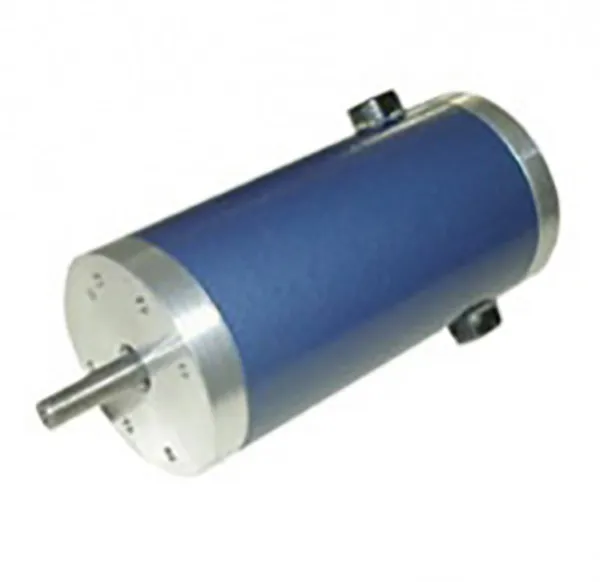

Permanent Magnet Motors (PMDC)

Permanent Magnet Motors (PMDC)

Efficient in both cost and performance, Carter Motor Company’s Permanent Magnet DC motor line offers the widest power range in the industry. With a wide range of input voltages and output speeds, Carter’s Engineering Department will be able to find or create a PMDC motor that will fulfill any need.

Product Specs

• Input Voltage: 12-230 Volts
• RPM: 150-10,000 RPM
• Torque: Up to 240 IN-LBS
• Horsepower: 0.10-5 HP

View by Size

• 2.5″ Diameter (23-26 Frame)
• 3.25″ Diameter (32 Frame)
• 3.3″ Diameter (33-34 Frame)
• 4.0″ Diameter (42 Frame)
• 6.5″ Diameter (56 Frame)

Features

• Ceramic Ferrite Magnets
• High Starting Torque
• Sealed Ball Bearings
• Replaceable Brushes
• Dynamically Balanced Armatures
• Shaft Diameter up to 5/8”
• 2 Year Warranty
• Custom Designs Available

Optional Features

• Face Mount
• Flange Mount
• Base Mount
• Adjustable Magnets
• Special Mounting Brackets
• Cord Sets, Leads and Cables
• Different Shaft Configurations
