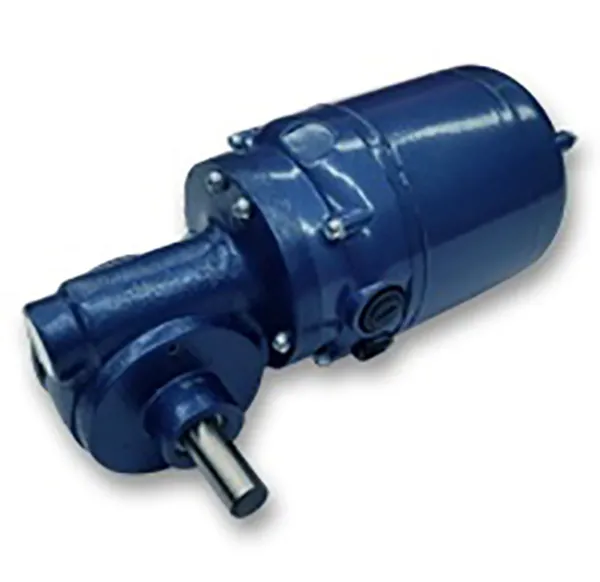

Right Angle Gearmotors

Right Angle Gearmotors

DC Shunt, DC Permanent Magnet, and Universal (AC/DC) Right Angle Gearmotors

Carter Motor Company Gearmotors are designed with hardened worm gears and bronze gears for high torque output and long life. All Gearmotors are available with various gear reductions as well as an output shaft that can be changed up to 12 different positions.

Universal

• 3.3″ Diameter
• 4.0″ Diameter

PMDC

• 2.5″ Diameter
• 3.25″ Diameter
• 3.3″ Diameter

DC Shunt

• 3.3″ Diameter
• 4.0″ Diameter

Features

• Drop-In Bodine Replacement
• High Starting Torque
• Sealed Ball Bearings
• Replaceable Brushes
• Bronze & Steel Gearing
• Dynamically Balanced Armatures
• Shaft Diameter up to 5/8”
• 2 Year Warranty
• Custom Designs Available

Optional Features

• Speed Controls
• Fail-safe Brakes
• Double Shaft Extensions
• Special Mounting Brackets
• Cord Sets, Leads and Cables
• Different Shaft Configurations
