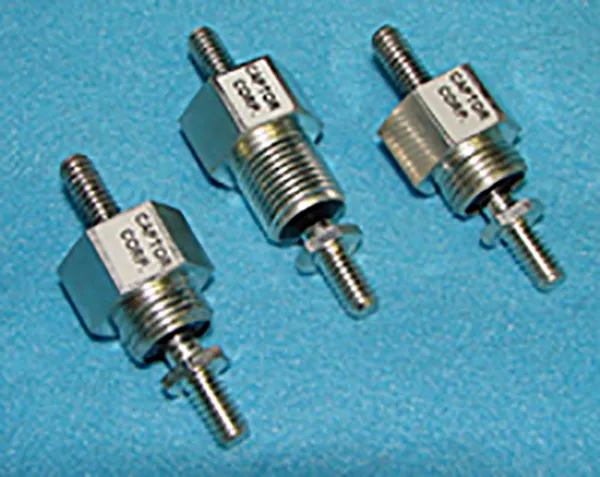

FTM-9000 High Current Mini Feedthru Capacitors

FTM-9000 High Current Mini Feedthru Capacitors

Termination Hardware Included

Captor High Current Mini Feedthru Capacitors are designed to comply with the applicable requirements of MIL-PRF-15733H.

Mechanical

1. Case Material : Brass
2. Threaded Terminal Material : Brass
3. Finish (Case and Terminals) : Electro Tin-Lead Reflow
4. Line Terminations : 8-32UNC-2A Threaded Terminal
5. Load Terminations : 8-32UNC-2A Threaded Terminal
6. Weight : 0.2 lbs.
7. Maximum Terminal Torque : 14 lb·in

Electrical

1. Rated AC Voltage : 140 VAC
2. Rated DC Voltage : 250 VDC
3. Rated Current : 25 Amps
4. Frequency : DC - 60 Hz
5. DWV : 600 VDC
6. Insulation Resistance @ 100 VDC : 5000 Megohms min
7. Dissipation Factor @ 1 kHz : < 0.7 %

Environmental

1. Operating Temperature Range : -55 ºC to +85 ºC
2. Storage Temperature Range : -55 ºC to +105 ºC.
