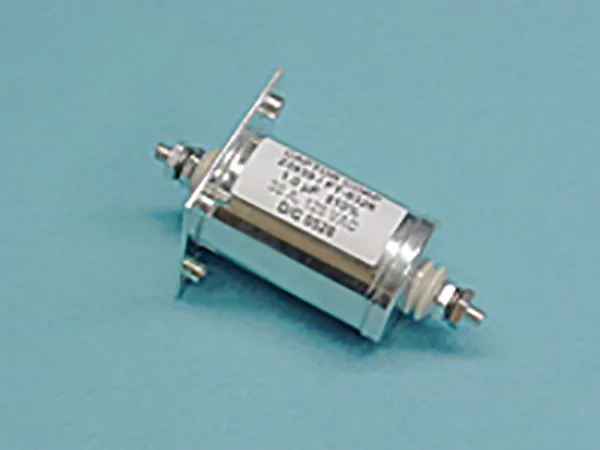

FT-8300 100VDC High Current Feedthru Capacitors

FT-8300 100VDC High Current Feedthru Capacitors

Specifications

Voltage Rating (DC)	100 V
Termination	10-32-UNF
Capacitance	0.5 µF
Tolerance	± 10 %
Insulation Resistance	> 1000 MΩ @ 100 VDC
DWV for DC Rated Capacitors	2 x the rated voltage (VDC)
DWV for AC Rated Capacitors	4.2 x the rated voltage (VDC)
Operating Temperature	-55 to +85 ºC
Case and Terminal Material	Brass with electro tin-lead reflow finish
Current Rating	0 to 36 A
Maximum Torque	18 lb·in
AC Rated Capacitors' Operating Frequency	50 to 400 Hz
Unit Mounting	10-32-UNF
Dimension A	1.50 in
Dimension B	1.000 in
Dimension C	0.500 in
Dimension D	2.00 in
Dimension E	0.75 in
Dimension F	0.56 in
Dimension G	1.00 in
Dimension H	0.68 in
Option	Copper threaded terminal for 2X the current rating
