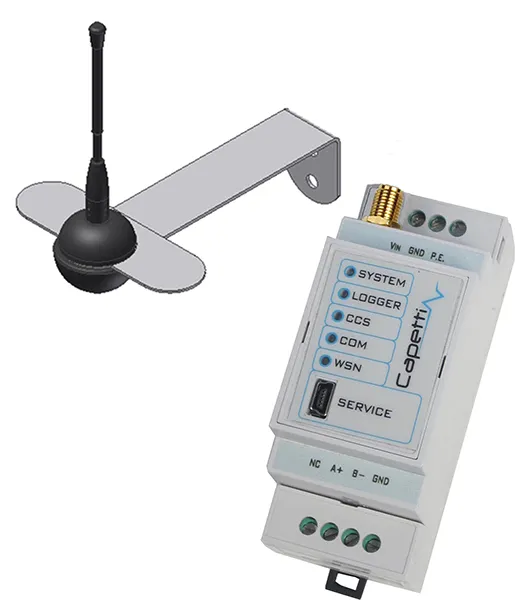

Wireless Control unit-MWDG-MB
Modular Wireless Datalogger Gateway - Gateway for data collection, storage and export - Manages up to 50 wireless probes/dataloggers with a memory of 2,500,000 samples - Equipped with an external WSN antenna - It has an RS485 interface with MODBUS RTU protocol - Through the WineCapManager ( Data Configuration and Exporting Tool) installed on a PC with Windows OS, via USB port, allows the configuration of the data loggers, the diagnosis of the radio network, the visualization (tables) and the export of data in XLS format. Mounting on 2U DIN rail - Expandable with additional modules of the EXP4IO line - Requires 12/24 Vdc 15W power supply (see accessory DR1524).
Technical Data
Supply voltage
12-24Vdc ( power supply not included )
Protection fuse
Automatic, self-resetting
Antennas supplied
Consumption
3W
Radio frequency
ISM 868MHz
Connections
USB, RS485 Modbus, Relay, GSM/GPRS, 0÷10V( depending on the model )
Terms of use
Degree of protection
IP30
Input signal( MWDG-4DI-GSM only )
Clean contact ( dry contact ) / open collector ( Max 5Vdc )
