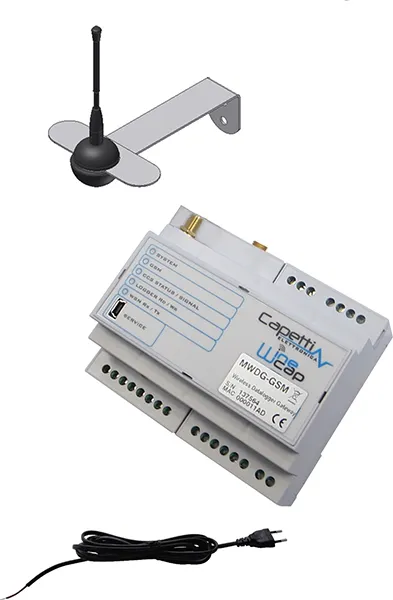

Wireless Control unit-MWDG-GSM
Modular Wireless Datalogger Gateway - Gateway for data collection, storage and export - Manages up to 50 wireless probes/dataloggers with a memory of 2,500,000 samples - Equipped with external WSN and GSM antennas - It has an RS485 interface with MODBUS RTU protocol and module Internal GSM for point-to-point connections and GPRS for uploading data to the Service Center www.winecap.it or sending files to FTP servers - Through the WineCapManager (Data Configuration and Exporting Tool) installed on a PC with Windows OS, via the USB port, it allows the configuration of the data loggers, the diagnosis of the radio network,visualization (tables) and data export in XLS format - WineCapManager can be used both locally and remotely via calling GSM modem - Mounting on 6U DIN bar - Expandable with additional modules of the EXP4IO line (by disabling the RS485 port) - Requires 12/24 Vdc 15W power supply (see accessory DR1524).
Technical Data
Supply voltage
12-24Vdc ( power supply not included )
Protection fuse
automatic self-resetting
Antennas supplied
( option: 5m extension )
Consumption
3W
Radio frequency
ISM 868MHz
Connections
USB, RS485 MODBUS, Relay, GSM/GPRS
( model dependent )
Terms of use
Degree of protection
IP30
