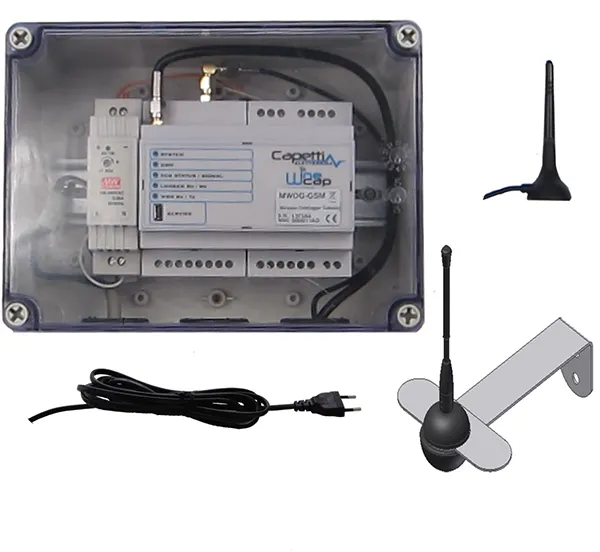

Wireless Control unit-MWDG-GSM-B
Modular Wireless Datalogger Gateway - Gateway for data collection, storage and export - Manages up to 50 wireless probes/dataloggers with a memory of 2,500,000 samples - Equipped with external WSN and GSM antennas - It has an RS485 interface with MODBUS RTU protocol and module Internal GSM for point-to-point connections and GPRS for uploading data to the Service Center www.winecap.it or sending files to FTP Server - Using the WineCapManager (Data Configuration and Exporting Tool) installed on a PC with Windows OS, via USB port, it allows the configuration of the data loggers, the diagnosis of the radio network,visualization (tables) and data export in XLS format - WineCapManager can be used both locally and remotely via a calling GSM modem - Expandable with additional modules of the EXP4IO line (by disabling the RS485 port) - Mounted inside a plastic case on DIN rail - Equipped with DR1524 power supply.
Technical Data
Supply voltage
12-24Vdc ( supplied by DR1524 power supply (15W - 24Vdc) included )
Protection fuse
Automatic, self-resetting
Antennas supplied
Consumption
3W
Radio frequency
ISM 868MHz
Connections
USB, RS485 Modbus, Relay, GSM/GPRS, 0÷10V ( depending on the model )
Terms of use
Degree of protection
IP30
Input signal( MWDG-4DI-GSM only )
Clean contact ( dry contact ) / open collector ( Max 5Vdc )
