EAGLE STITT TESTER

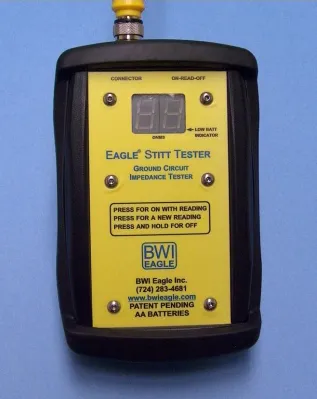

The Eagle Stitt Tester is a compact, hand-held device used to accurately measure low impedances, such as those found in grounding circuits. The device produces a small, 60 Hertz current which flows in the circuit being tested. The Tester accurately determines the value of this current, as well as the amount of voltage produced by this current, and automatically calculates the impedance of the circuit. The impedance is read directly in Ohms from a large, LED display on the front of the

Tester. The Eagle Stitt Tester is accurate to within 0.1 Ohm, and will determine the impedance of a circuit between 0.0 and 9.9 Ohms. Since the Tester makes use of a Kelvin measurement method, neither the resistance of the connection points, nor the resistances of the current and voltage-carrying wires involved in the measurement have any effect on the accuracy of the resultant impedance measurement. The Tester will display the true impedance of the circuit being tested, ignoring any connection resistance or lead resistance. The Eagle Stitt Tester is also useful for testing circuit breaker, contactor, and relay contact resistance. With the two green alligator clips connected to two separate points on one side of the contact, and the red and black lips connected to two separate points on the other side, the contact resistance is determined
