BWI Eagle

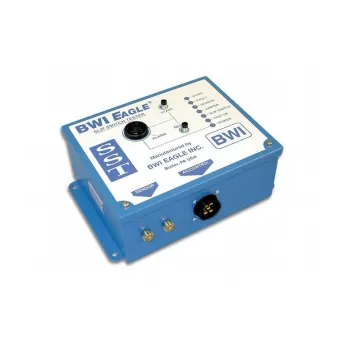

SLIP SWITCH TESTER

INSTALLATION

The unit is supplied with a 15 foot, 5 conductor AC/Control cable and a 15

foot, 2 conductor sensor cable.

• Remove AC power from the Belt Starter.

• Mount the unit in a convenient location at the Belt Starter.

• Locate the motor control relay in the starter box. Install the white and

• black wires from the 5 conductor cable to the 120 VAC coil terminals

• on the relay.

• Connect the green control wire to chassis ground in the starter.

• Connect the orange and red wires directly across the Slip Switch

• control relay contacts.

• Connect the black and white sensor cable wires in parallel with the

• existing sensor wiring from the Slip Switch. Be sure to observe

• polarity.

• Reapply AC power to Belt Starter.
