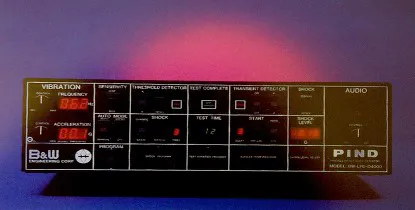

Particle Impact Noise Detector
While still in service, the BW-LDP-D4000 Particle Impact Noise Detector is not longer in production as of 2012.
Download PDF: D4000 Brochure
Download PDF: Instructions For Returning BW-LPD-D4000 For Calibration Service
Produced 1991-2012
VIBRATION:
FREQUENCY: SINE WAVE 27Hz TO 265Hz
ACCELERATION: 0 TO 20G PEAK
SHAKER: 100 FORCE LBS 3/4″ IN STROKE 75 IN PER/SEC VELOCITY
AMPLIFIER: 250 WATTS MINIMUM
D.U.T. WEIGHT: 300 GRAMS PRACTICAL LIMIT @ 20G
SHOCK:
DURATION: LESS THAN 100 MICROSECONDS HALF SINE
AMPLITUDE: TYPICAL 1000 +/- 200G.
APPLICATION: AUTO OR MANUAL VATH OR WITHOUT SIMULTANEOUS VIBRATION
AXIS: SAME AS VIBRATION, DIRECTION OPPOSING GRAVITY
