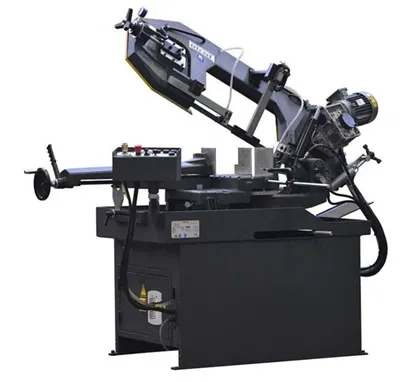

Semi Automatic Band Sawing Machine BMSY-270DG

Semi Automatic Band Sawing Machine BMSY-270DG
  • Semi-automatic double miter for cutting profiles and Solid material in steel and non-ferrous material and excellent price-performance ratio
  • Robust constructed monoblock saw frame
  • Manually swiveling saw frame with hydraulic clamping for optimal Miter (not BMSY 270 DGH)
  • Miter on mobile control panel digitally readable (not BMSY 270 DGH)
  • Hydraulic clamping of the horizontal vise
  • Automatic saw frame rising on the cut end
  • Continuously adjustable belt speed 34-68 m / min BMSY 270 DGH / 20-100 m / min BMSY DGH 360 /440 DGH
  • Sensitive cutting pressure regulation function of the material properties
  • Hydraulic-mechanical belt tension
  • Tape guide with hard metal pads sheets and rolls
  • Thermal overload protection and no-volt release
  • Automatic shut-off after cut end
  • Automatic belt break protection Driven
  • Chip brush on impeller (not BMSY 270 DGH)

Standard Features:

  • Saw Blade 27
  • Inverter
  • Blade Brash
  • Hydromechanics Blade Tension
  • Security Switch
  • Vice
  • Control Panel
  • SAP Coolant Pump
  • Heavy Duty Gearbox
  • Height Adjustment switch
  • Material Limit Shaft

Optional Features:

  • 3 Mt Material Roller Table
  • ILC Microspray Device
