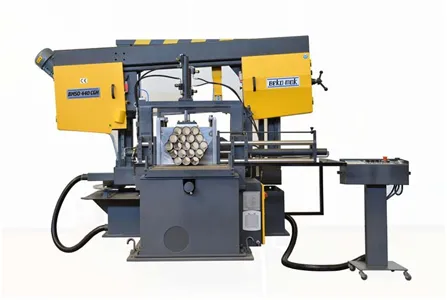

NC controlled horizontal band saws with linear guide ways are ideal for miter cuts with different quantities. With movement of bow it’s possible to cut between 90° and +30°. You can do 10 different programming (length and quantity) and can be watched on digital panel. Measurement is done by repeating the stroke according to 500 length stroke Cutting capacity at 90° is 425mm x 610mm for flat type and 450 mm for round shaped materials. With auto height adjustment sensors bow approaches the material with fast speed and hydraulic cutting control allows the bow go up over the material after the cut. All this process is controlled mechanical switch. Fixing the bow at any angle is controlled by hydraulically brake system and you can control it by another digital counter placed on main body of machine. As in all Beka-Mak products in BMSO 440CGH, safety is most important priority and all mechanical and electrical devices are set for best safety measures. Standard Features:
Optional Features:
