Frequency converter

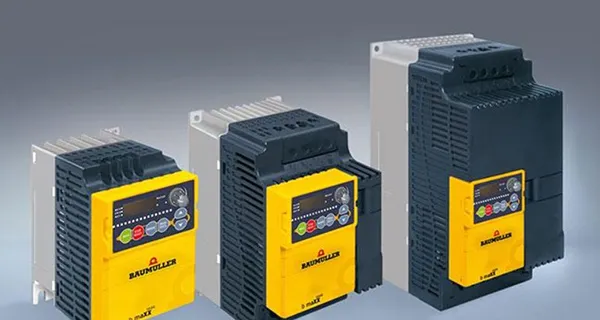

b maXX 1000 - highly efficient, easy-to-use frequency converter

In the power range from 0.2 to 11 kW, the b maXX 1000 frequency converter controls vector-controlled standard motors in three power levels in a highly efficient manner.

Baumüller has consistently designed the b maXX 1000 for ease of use. b maXX 1000 offers an integrated EMC filter as standard to comply with the current EU standard (EN 55011A/ Second Environment). Numerous protection and overload functions, such as phase failure detection on the mains and motor side, ensure trouble-free operation. Extensive control and data management continuously provides a precise overview of the current drive status.

With its 15 different speed preselection speeds, it is also equipped for extensive applications. Thanks to its adjustable pulse width modulation from 1 to 15 kHz, it can also be operated as quiet as a whisper. Its rotating field frequency ranges from 0.1 to 400 Hz. This means that machines with a high number of poles can also be operated in the high speed range. The b maXX 1000 offers connection options to the most important open fieldbus system CANopen. With its integrated protocols, it is able to work as a motion control slave.
