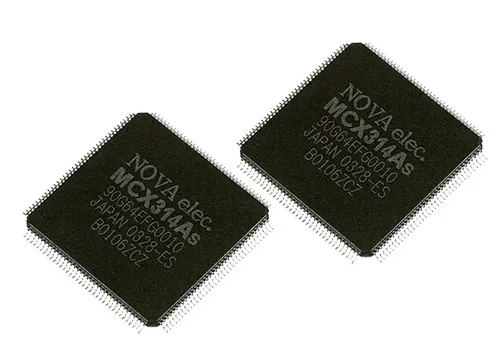

MCX314As 4Axis Motion Control IC

MCX314As is a multi-axis motion control IC.

- This IC can connect up to 4 axes of either stepper motors or servo motors for position, speed, and interpolation control.

- Action management function is included so that host CPU will not be interfered during the driving.

• Independently control each axis

• Built-in inear and circular interpolations function

• Built-in S-shape and trapezoidal speed acceleration/deceleration function

• No interference with host CPU, while processing interpolations

• Encoder feedback included

• Maximum speed: 4MPPS
